Model No: ZK200-2S/T Series

ZK200 220V 1/3Phase Mini AC Drive

Base on the market demand of small power, small size and easy speed regulation, the mini AC drive is targeted. As a compact AC drive with small size and large capacity, it has significant advantages such as high power density, high EMC specification design and high reliability. This kind converters are characterized by their compact size and portability, making them suitable for use in various applications such as household appliances, rural appliances, small mechanical equipment, and cleaning machines.

Quantity :

Contact Now

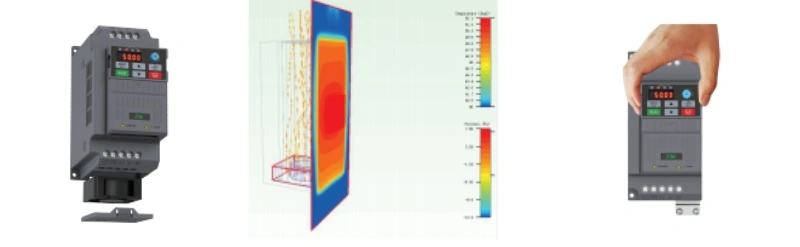

ac drive thermal design and removable keyboard

Product Features:

1. Easy maintenance. Features an easy-to-maintain removable cooling fan that can be easily installed and removed.

2. Advanced thermal design. Wide tooth surface heat dissipation and high air velocity design ensure that the full-power AC drive can be used in a high-temperature environment without capacity reduction.

3. Superior over voltage suppression. The over voltage suppression function prevents the AC drive from over voltage faults caused by an increase in bus voltage.

4. Superior over current suppression. The over current suppression function prevents the AC drive from over current faults due to sudden loads or disturbances, and reduces the damage caused by unexplained shutdowns.

5. Small and compact design. Optimal power density design, effectively minimize the product volume; support for wall-mounted installation, DIN-rail installation, to adapt to a variety of installation environments.

6. Removable keyboard. Newly designed keyboard, better operability, debugging is more convenient, and the keyboard supports the external lead, the installation has a variety of ways.

ZK200-2S Series Model List:

Model	Power Rated (KW)	Output Current (A)	Input Current (A)	Matched Motor (KW)	Brake Unit
ZK200-2S-0.4GB	0.4	2.3	5	0.4	Inbuilt
ZK200-2S-0.75GB	0.75	4.0	8.2	0.75
ZK200-2S-1.5GB	1.5	7.0	14	1.5
ZK200-2S-2.2GB	2.2	9.6	23	2.2

ZK200-2T Series Model List:

Model	Power Rated (KW)	Output Current (A)	Input Current (A)	Matched Motor (KW)	Brake Unit
ZK200-2T-0.4GB	0.4	2.3	4.0	0.4	Inbuilt
ZK200-2T-0.75GB	0.75	4.0	4.8	0.75
ZK200-2T-1.5GB	1.5	7.0	8.8	1.5
ZK200-2T-2.2GB	2.2	9.6	12	2.2

Items		Specifications
Power input	Rated input voltage	200V Voltage Class:single/three-phase 200V ~ 240V
	Rated input voltage	400V Voltage Class:Three-phase 380V～440V
	Frequency	50Hz/60Hz, tolerance ±5%
	Voltage range	-15%～+15%
	Voltage range	Voltage out-of-balance rate<3%
Power output	Output voltage (V)	3-phase：0%～rated input voltage, error < ±3%
	Output frequency (Hz)	0.00%～600.00Hz; unit：0.01Hz
	Overload capacity	G type：150% - 60 seconds, P type：120% - 60 seconds
Control characteristics	Control mode	V/f control Sensorless vector control (SVC)
	Range of speed regulation	1：200 (Sensor-less vector control )
	Speed accuracy	±0.5% (Sensor-less vector control )
	Torque control accuracy	5%（SVC）
	Torque increase	Automatic torque lifting; Manual torque increased by 0.1-30.0%
	Starting torque	0.25Hz：150% (Sensor-less vector control )
Basic functions	ACC/DEC time	0.0～30000s
	Carrier frequency	0.5kHz～16kHz
	Frequency setting	Digital setting + Keyboard Control，Communication，Analog setting，Terminal pulse setting
	Motor start-up methods	Started from starting frequency，DC brake start-up，Speed tracking start
	Motor stop methods	Ramp to stop，Coast to stop
Featured functions	Parameter copy, parameter backup, common DC bus, parameters, flexible parameter displayed & hidden, various master & auxiliary setting and switchover, flying start, a variety of Accel/Decel curves optional, brake control, 16-step speed control programmable (2-step speed supports flexible frequency command), wobble frequency control, fixed length control, count function, multiple fault records, overexcitation brake, overvoltage stall protection, undervoltage stall protection, restart on power loss, skip frequency, frequency binding, four kinds of Accel/Decel time, overheat protection, flexible fan control, process PID control, simple PLC, multi-func-tional key programmable, droop control, autotuning,field-weakening control, high-precision torque restraint, V/f separatedcontrol
Environment	Place of operation	Indoors, no direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, water drop or salt, etc.
	Altitude	0~2000m. De-rate 1% for every 100m when the altitude is above 1000 meters
	Ambient temperature	-10℃～50℃, The rated output current should be derated1% for every 1℃ when the ambient is 40℃～50℃
	Relative humidity	5~95%, no condensation
	Vibration	Less than 5.9m/s² (0.6g)
	Storage temperature	-20℃～+60℃
Others	Efficiency at rated Amps	Rated power 7.5kW and below:≥93% 11~22kW:≥ 95%
	IP grade	IP20
	Cooling method	Forced air cooling,Natural cooling
