Model No: ZK200-4T Series
ZK200 380V 3Phase Large Capacity AC Drive
Base on the market demand of small power, small size and easy speed regulation, the mini AC drive is targeted. As a compact AC drive with small size and large capacity, it has significant advantages such as high power density, high EMC specification design and high reliability. Widely used in transportation belts, automated production lines, automatic doors, wood processing, optical grinding, food processing, pharmaceutical centrifuges, logistics equipment, ceramic equipment, sewage treatment, constant pressure water supply, textile and other small automated machinery.
Quantity :

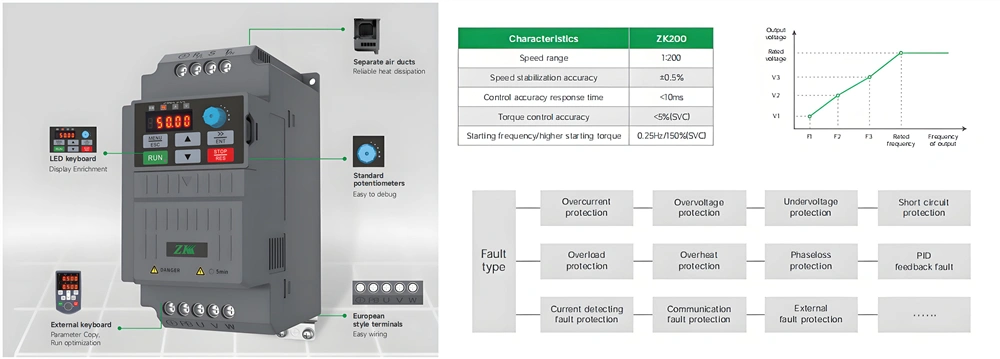

Product Features:
1. Adaptive vector control. Vectorized performance with VF convenience. Motor parameters insensitive, no self-learning required.
2. Integration of speed and torque control. Torque and speed control performance to ensure smooth mechanical operation, rapid response, small torque pulsation.
3. Superior over voltage suppression. The over voltage suppression function prevents the AC drive from over voltage faults caused by an increase in bus voltage.
4. Superior over current suppression. The over current suppression function prevents the AC drive from over current faults due to sudden loads or disturbances, and reduces the damage caused by unexplained shutdowns.
5. Protection functions. With hardware protection functions such as output-to-ground short circuit protection, internal buffer relay protection, fan drive circuit protection, motor overload protection, phase loss protection, overheat protection, over voltage protection, over current protection, under voltage protection, etc., it realizes all-around protection for the internal and peripheral devices of AC drive.
6. Maintenance tools. Complete monitoring, configuration, optimization and diagnostic services are provided by FGAppStudio running on PC tool.
ZK200-4T Series Model List:
| Model | Power Rated (KW) | Output Current (A) | Input Current (A) | Matched Motor (KW) | Brake Unit |
| ZK200-4T-0.4GB | 0.4(0.75) | 1.5(2.5) | 1.9(3.5) | 0.4(0.75) | Inbuilt |
| ZK200-4T-0.75GB | 0.75(1.5) | 2.5(3.8) | 3.5(4.6) | 0.75(1.5) | |
| ZK200-4T-1.5GB | 1.5(2.2) | 3.8(5.1) | 4.6(6.3) | 1.5(2.2) | |
| ZK200-4T-2.2GB | 2.2(3.0) | 5.1(7.1) | 6.3(8.6) | 2.2(3.0) | |
| ZK200-4T-4.0GB | 4.0(5.5) | 9.5(13) | 12.1(16.8) | 4.0(5.5) | |
| ZK200-4T-5.5GB | 5.5(7.5) | 13(17) | 16.8(22) | 5.5(7.5) | |
| ZK200-4T-7.5GB | 7.5(11) | 17(25) | 22(32.5) | 7.5(11) | |
| ZK200-4T-11GB | 11(15) | 25(32) | 32.5(41.5) | 11(15) | |
| ZK200-4T-15GB | 15(18.5) | 32(37) | 41.5(49.6) | 15(18.5) | |
| ZK200-4T-18.5GB | 18.5(22) | 37(45) | 49.6(59) | 18.5(22) | |
| ZK200-4T-22GB | 22(30) | 45(60) | 59(65) | 22(30) |
