Model No: ZK300-4T Series

ZK300 380V 3Phase High Performance Vector Drive

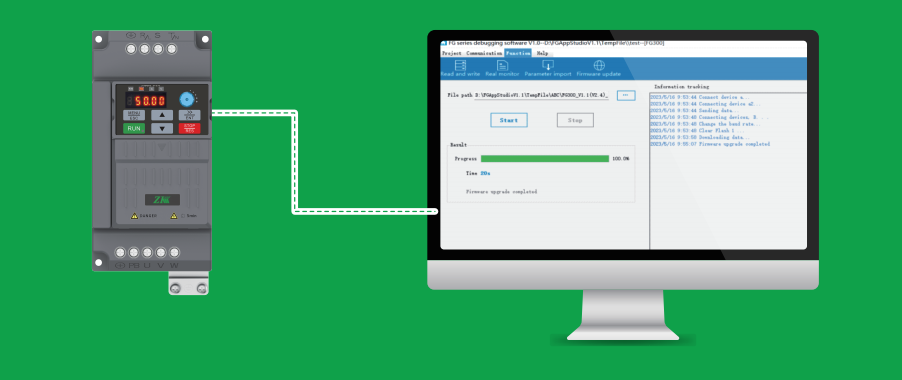

ZK300 series drives can drive various motors such as ordinary asynchronous motors, variable frequency motors, synchronous motors, high-speed motors and spindle motors, and are suitable for various loads such as constant torque, constant power, fans and pumps. Low-speed high-torque, improve equipment low-speed control performance. Support embedded, wall-mounted, cabinet installation. Support host computer operation, reduce debugging time and difficulty. Advanced heat dissipation design to effectively ensure product thermal reliability. Strict component selection and testing procedures, and rigorous whole-machine testing to ensure product quality.

Quantity :

Contact Now

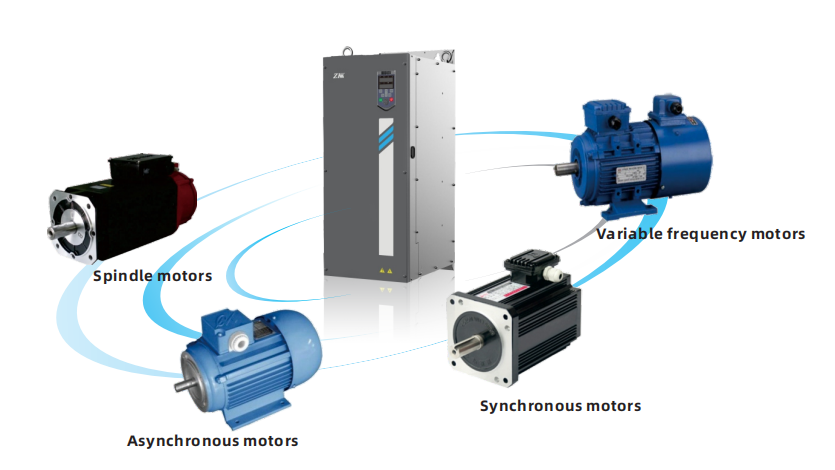

vector drive driving multiple types of pumps

Product Features:

1. Excellent dynamic response. Excellent torque and speed dynamic response, Sensorless vector control torque response time(time from 0 step to rated torque) is less than 20ms; Feedback vector control torque response time is less than 10ms; the dynamic response accuracy of the speed loop is 0.5%s.

2. Completely independent air duct structure. Electronic device and radiator duct isolation design, in which capacitance, MOS and relay to strengthen protection, machine a closed design is adopted on both sides of the device. Improve the tolerance of the machine in harsh environment.

3. EMC grounding design. Adopt innovative EMC grounding design, grounding canbe quickly selected through the terminal or intermittently.effectively solve EMC interference.

4. High starting torque. Low frequency high torque output. In feedback vector control mode, it can output 200% of rated torque at zero speed; in sensor-less vector control mode, it can output 150% of rated torque stably at 0.25Hz.

5. Super strong overcurrent suppression ability. The overcurrent suppression function can avoid the overcurrent fault caused by sudden load or interference in frequency converter. Reduce the loss caused by unexplained shutdown.

6. Super strong overvoltage suppression capability. The overvoltage suppression function can avoid the overvoltage fault caused by the bus voltage rise of the variable frequency drives.

7. Fast disassembly and assembly design of the fan. ZK300 adopts innovative fan structure design. On the premise of ensuring the stability and efficiency of the fan, it can be replaced and cleaned quickly without the help of external tools.

8. Overexcitation braking function. In the case of partial inertia shutdown, the braking resistor can be used without increasing the braking resistance, and the over-excitation braking function can be used realize fast braking and improve product ease of use.

9. Excellent speed tracking performance. In a very short time to achieve speed tracking start with identification direction, greatly reduce the impact of shutdown and restart.

10. Protective function. It has output short-circuit to ground protection, internal buffer relay protection, fan drive circuit protection, external 24VDC short circuit protection, motor overload protection and other hardware protection which can comprehensively protect the internal and peripheral equipment of the drive.

ZK300-4T Series Model List:

Model		Power Rated (KW)	Output Current (A)	Input Current (A)	Matched Motor (KW)	Brake Unit	DC Reactor
ZK300-4T-0.75B/1.5PB	0.75GB	0.75	2.5	3.5	0.75	Inbuilt	None
ZK300-4T-0.75B/1.5PB	1.5PB	1.5	3.8	4.6	1.5
ZK300-4T-1.5GB/2. .2PB	1. 5GB	1.5	3.8	4.6	1.5
ZK300-4T-1.5GB/2. .2PB	2.2PB	2.2	5.1	6.3	2.2
ZK300-4T-2.2GB/3.7PB	2.2GB	2.2	5.1	6.3	2.2
ZK300-4T-2.2GB/3.7PB	3.7PB	3.7	9.0	11.5	3.7
ZK300-4T-3.7GB/5. 5PB	3.7GB	3.7	9.0	11.5	3.7
ZK300-4T-3.7GB/5. 5PB	5.5PB	5.5	13	16.8	5.5
ZK300-4T-5.5GB/7.5PB	5.5GB	5.5	13	16.8	5.5
ZK300-4T-5.5GB/7.5PB	7.5PB	7.5	17	22	7.5
ZK300-4T-7.5GB/11PB	7.5GB	7.5	17	22	7.5
ZK300-4T-7.5GB/11PB	11 PB	11	25	32.5	11
ZK300-4T-11GB/15PB	11GB	11	25	32.5	11
ZK300-4T-11GB/15PB	15PB	15	32	41.5	15
ZK300-4T-15GB/18.5PB	15GB	15	32	41.5	15
ZK300-4T-15GB/18.5PB	18.5PB	18.5	37	49.6	18.5
ZK300-4T-18.5GB/22PB	18. .5GB	18.5	37	49.6	18.5
ZK300-4T-18.5GB/22PB	22PB	22	45	59	22
ZK300-4T-22GB/30PB	22GB	22	45	59	22
ZK300-4T-22GB/30PB	30PB	30	60	65	30
ZK300-4T-30G/37P	30G	30	60	65	30	Inbuilt optional	Inbuilt optional
ZK300-4T-30G/37P	37P	37	75	80	37
ZK300-4T-37G/45P	37G	37	75	80	37
ZK300-4T-37G/45P	45P	45	91	95	45
ZK300-4T-45G/55P	45G	45	91	95	45
ZK300-4T-45G/55P	55P	55	112	118	55
ZK300-4T-55G/75P	55G	55	112	118	55
ZK300-4T-55G/75P	75P	75	150	157	75
ZK300-4T-75G/90P	75G	75	150	157	75
ZK300-4T-75G/90P	90P	90	176	180	90
ZK300-4T_90G/110P	90G	90	176	180	90
ZK300-4T_90G/110P	110P	110	210	214	110
ZK300-4T-110G/132P	110G	110	210	214	110
ZK300-4T-110G/132P	132P	132	253	256	132
ZK300-4T-132G/160P-L	132G	132	253	240	132	Externally mounted when needed	Inbuilt
ZK300-4T-132G/160P-L	160P	160	304	287	160	Externally mounted when needed	Inbuilt

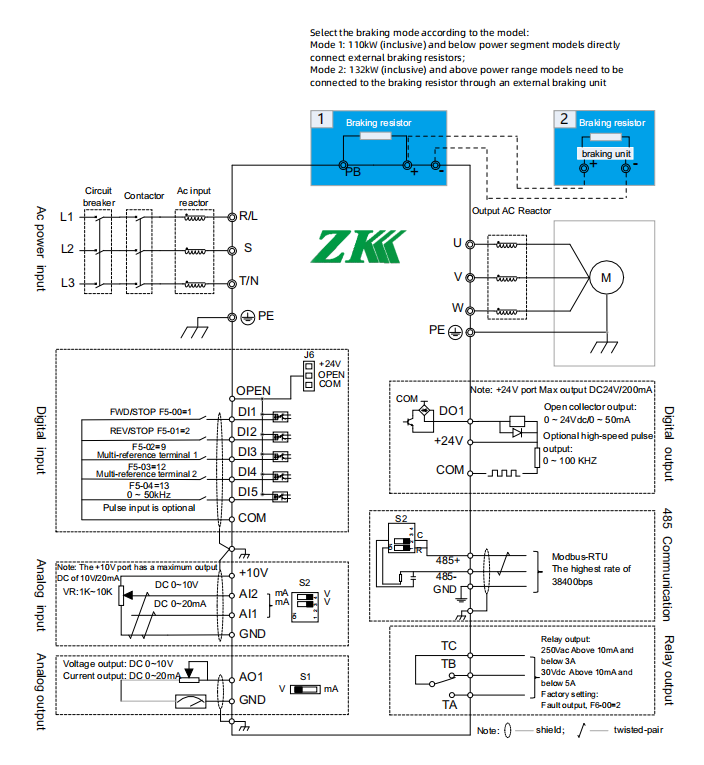

Items		Specifications
Power input	Rated input voltage	200V Voltage Class：single/three-phase 200V ~ 240V
	Rated input voltage	400V Voltage Class：Three-phase 380V～440V
	Frequency	50Hz/60Hz, tolerance ±5%
	Voltage range	Continuous voltage fluctuation ±15%, short fluctuation -15%～+15%
	Voltage range	Voltage out-of-balance rate<3%
Power output	Output voltage (V)	3-phase：0%～rated input voltage, error < ±3%
	Output frequency (Hz)	0.00%～600.00Hz; unit：0.01Hz
	Overload capacity	G type：150% - 60 seconds, P type：120% - 60 seconds
Control characteristics	Control mode	V/f control Sensorless vector control (SVC) Feedback vector control(FVC)
	Range of speed regulation	1：200 (Sensor-less vector control ) 1：1000 (Feedback vector control)
	Speed accuracy	0.5%（SVC），0.02%（FVC）
	Torque control accuracy Torque increase	5%（SVC），3%（FVC）
	Torque increase	Automatic torque lifting; Manual torque increased by 0.1-30.0%
	Starting torque	0.25Hz：150% (Sensor-less vector control ) 0Hz：200% (Feedback vector control)
Basic functions	ACC/DEC time	0.0～30000s
	Carrier frequency	0.5kHz～16kHz
	Frequency setting	Digital setting + Keyboard Control，Communication，Analog setting，Terminal pulse setting
	Motor start-up methods	Started from starting frequency，DC brake start-up，Speed tracking start
	Motor stop methods	Ramp to stop，Coast to stop
Featured functions	Parameter copy, parameter backup, common DC bus, free switchover between two motors’ parameters, flexible parameter displayed & hidden, various master & auxiliary setting and switchover, flying start, a variety of Accel/Decel curves optional, brake control, 16-step speed control programmable (2-step speed supports flexible frequency command), wobble frequency control, fixed length control, count function, three history faults, over excitation brake, over voltage stall protection, under voltage stall protection, restart on power loss, skip frequency, frequency binding, four kind of Accel/Decel time, motor thermal protection, flexible fan control, process PID control, simple PLC, multi-functional key programmable, droop control, autotuning,field-weakening control, high-precision torque restraint, V/f separatedcontrol
Environment	Place of operation	Indoors, no direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, water drop or salt, etc.
	Altitude	0~2000m. De-rate 1% for every 100m when the altitude is above 1000 meters
	Ambient temperature	-10℃～50℃, The rated output current should be derated1% for every 1℃ when the ambient is 40℃～50℃
	Relative humidity	5~95%, no condensation
	Vibration	Less than 5.9m/s² (0.6g)
	Storage temperature	-20℃～+60℃
Others	Efficiency at rated Amps	Rated power 7.5kW and below：≥93% ，11~45kW：≥ 95%，55kW and above：≥98%
	IP grade	IP20
	Cooling method	Forced air cooling,Natural cooling
