Model No: ZK100 2T/4T Series

ZK100 Series Vector Control Motor VFD

The ZK100 mini AC drive embodies the latest in high-performance frequency inverter technology, catering to modern industrial demands. With features like speed & torque control, slip compensation, energy-saving, and auto-tuning, it excels in driving diverse asynchronous motors.

Voltage Level: 220V, 380V
Power Range: 0.4KW-11KW

Quantity :

Contact Now

Designed for small size and high efficiency, the ZK100 boasts high capacity, power density, EMC compliance, and unparalleled reliability. Perfect for automation, pumps, fans, and more, it's a compact yet powerful solution for today's industries.

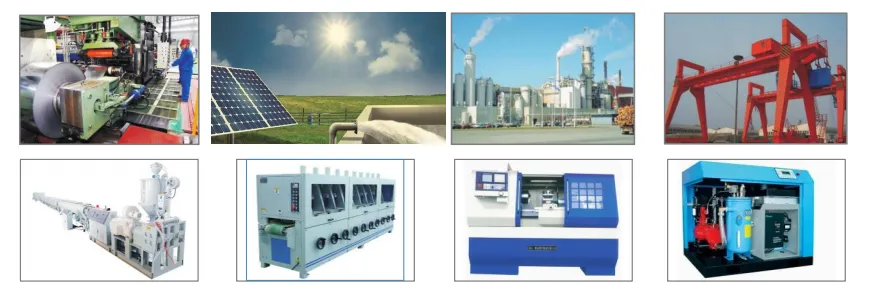

Application:

1. Metal, CNC machine, Wire drawing machines and other mechanical equipment, kinds of AC pumps.

2. Agriculture irrigation, solar water pumping system.
3. Boiler drum, Induced fan, Counter-rotating fan, blower.

4. Kinds of machine with motor drivings.

5. Papermaking, Chemical, Pharmaceutical, Textile etc.

6. Kinds of AC pumps, fans...

ZK100Series Model List:

Models	Rated power	Rated current	Size LWH(mm)
220V INPUT,0-220V OUTPUT
ZK100-2T-0.4G	220V,0.4kw	2.1A	17079127
ZK100-2T-0.75G	220V,0.75kw	3.8A	17079127
ZK100-2T-1.5G	220V,1.5kw	7A	17079127
ZK100-2T-2.2G	220V,2.2kw	9A	18786144
ZK100-2T-3.0G	220V,3.0kw	13A	216101151
ZK100-2T-4.0G	220V,4.0kw	15A	237111168
ZK100-2T-5.5G	220V,5.5kw	20A	237111168
380V INPUT,0-380V OUTPUT
ZK100-4T-OK40GB	0.4KW,380V	1.5	17079127
ZK100-4T-OK75GB	0.75KW,380V	2.1A	17079127
ZK100-4T-OK75GB	0.75KW,380V	2.1A	17079127
ZK100-4T-1K5GB	1.5KW,380V	3.8A	17079127
ZK100-4T-2K2GB	2.2KW,380V	5.1A	18786144
ZK100-4T-3K0GB	3.0KW,380V	7.1A	18786144
ZK100-4T-4K0GB	4.0KW,380V	9.0A	216101151
ZK100-4T-5K5GB	5.5KW,380V	12.6A	216101151
ZK100-4T-7K5GB	7.5KW,380V	16.1A	237111168
ZK100-4T-011GB	11KW,380V	25A	249143172
ZK100-4T-011GB	11KW,380V	25A	249143172

ltems		Specification
Control mode	Control mode	SVC in open loop	V/F control
	Starting torque	0.5Hz 180%	0.5Hz 150% 0.00Hz 180%
	Speed stabilizingprecision		±0.5% Maximum speed(SVC)
	Motor type	General induction motor
Function design	Overload capacity	G-type machine: 110% long term; 150% 1 minute;
	frequency resolution	Analog setting: 0.025% of the maximum frequency Digital setting: 0.01Hz
	Carrier frequency	0.5K~16KHz, the carrier frequency can be adjusted by temperature automatically
	Frequency reference setting method	Digital of Control panel, analog AVI, ACI, potentiometer of control panel, UP/DN control, communication
	Acceleration/deceleration characteristic	Linear curve and S curve accel/decel mode, range of time: 0.0 to 65000S.
	V/F curve	3 mode: linear, multiple points, N Power
	V/F separation	2 times separation: totally separation, half separation
	DC braking	DC braking frequency: 0.0 to 300Hz, DC braking current: 0.0% to 100%
	Braking unit	Standard built in for up to 4T22G(22kw), optional built it for 4T75G (30kw to 75kw), external built for above 4T93G(95kw).
	Jog function	Job frequency range: 0.0 to 50.0Hz, the accelerationand decelerationtime of Jog
	Configure PIDfunction	Easy to perform pressure, flow, temperature close loop control.
	PLC multiple speed	To achieve 16 segment speed running through built in PLC or terminal control
	Common Dc bus	Multiple drivesuse one DC bus for energy balance.
	Auto voltage regulation (AVR)	Enable to keep output voltage constant when grid fluctuation.
	Over load tolerance capability	G type model: 150% rated current for 60s, 180% rated current for 3s, P type Model: 120% rated current for 60s, 150% rated current for 3s.
	Stall protectioncontrol when over current,over voltage	Carry out limiting automation for running current, voltage to prevent over current, over voltage frequently.
	Rapidcurrent limit function	Minimize the IGBT module broken to protect the AC Drive, maximum reduce the over current fault.
	Torque limit and torque control	"Excavator"characteristics torque limit automatically during motor running. Torque control is available in close loop vector control mode.
Feature	Friendly interface	Display “Hello” when power on.
	Multiple function key JOG button	lt can set for Forward Jog, reverse Jog, forward/reverse switch.
	Timing control function	A total running time and total running time calculating.
	2 group motor parameters	To achieve two motor switchoverfreely, control mode is selectable.
	Motor over heat protection	Accepting motor temperature sensor signal input via Al1 terminals.
	Multiple kinds encoder*	Compatible collectorPG, differentialPG, and rotary transformerEncoder(resolver).
	Command source	Control panel,control terminals, series communication, switch freely.
	Frequency source	Digital setting,analog current/voltage,pulse setting, serial communication, main and auxiliary combination.

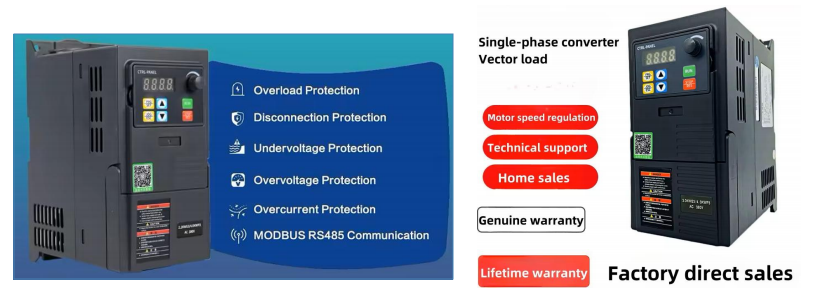

	Protection function	Short circuit detect whenpower on, input/output phase loss, over voltage, over current, under voltage, over heat, over load protection.
Environment	Application site	lndoor, free of exposure to sunlight, no dusty, no corrosive, no inflammable gas, no oil and water vapor, and water dipping.
	Altitude	Lower 1000m
	environment temperature	-10℃~+40℃, power derated for 40 50℃, rated current derated 1% for 1℃ increasing.
	humidity	Less than 95%, no water condense
	storage	40~+70℃
	lp rating	IP20
