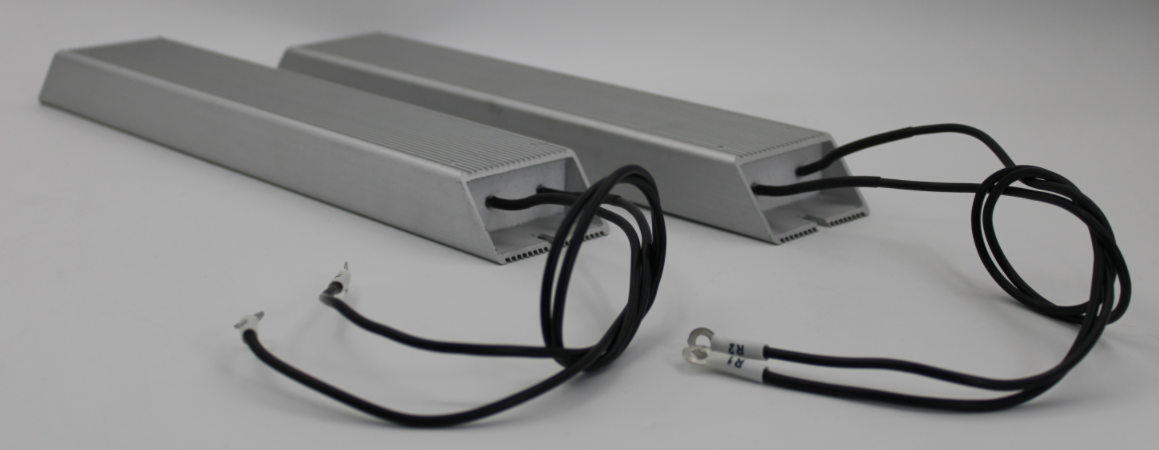

Dynamic Braking Resistor for Solar Pump VFD
Braking resistor, also known as dynamic braking resistor, is a type of waveform resistor primarily utilized in mechanical systems where variable frequency drives (VFDs) control motors for rapid stopping. Its primary function is to convert the regenerative electrical energy generated by the motor during rapid deceleration into thermal energy, ensuring smooth and efficient stopping.
Quantity :
Purpose and Function:
- Used in VFD-controlled motor systems to manage the regenerative energy produced during quick stops.
- Converts this energy into
- In motor control systems, braking resistors are used to dissipate the regenerative energy generated by motors during deceleration or braking. This helps protect the motor, drive system, and power network from potential damage caused by the sudden surge of energy.
- heat, preventing damage to the motor and the drive system.
Industrial Applications:
- In motor control systems, braking resistors are used to dissipate the regenerative energy generated by motors during deceleration or braking. This helps protect the motor, drive system, and power network from potential damage caused by the sudden surge of energy.
- VFDs are commonly used to control the speed and torque of AC motors. When an AC motor decelerates under VFD control, it generates regenerative energy that can cause voltage spikes in the drive system. Braking resistors are connected to the VFD to absorb this energy, preventing voltage spikes and protecting the drive circuitry.
- Servo motors are precision motors used in a wide range of applications, including robotics, automation, and CNC machinery. During braking or deceleration, servo motors can also generate regenerative energy. Braking resistors are integrated into servo systems to dissipate this energy, ensuring smooth and reliable operation.
- In elevator and lift systems, braking resistors are used to control the descent of the car during braking or emergency stops. They help convert the kinetic energy of the descending car into thermal energy, ensuring a safe and controlled deceleration.
- Wind turbines generate electricity by converting the kinetic energy of wind into mechanical energy, which is then converted into electrical energy. During braking or shutdown, wind turbines can generate significant regenerative energy. Braking resistors are used to dissipate this energy, protecting the turbine and power grid from potential voltage spikes.
- In industrial automation settings, braking resistors are used in a variety of applications, including conveyor systems, packaging machinery, and material handling equipment. They help ensure smooth and efficient braking of motors, reducing wear and tear on mechanical components and improving overall system reliability.
