Model No: GT90 Series
GT90 Remote Controller for SG600/SG320 Solar Pump Inverter
GT90 is a wireless date transmission terminal based on 4G network，provides transparent date channel, can facilitate the realization of the remote, wireless and network communication. Make it easy for your device with Internet to connect by wireless. GT90 has a wide range of network coverage (it can be used anywhere you can use mobile phones), flexible and fast networking (installation can be used), low operation cost (billing according to the flow) etc.It is easy to access solar pump inverter to read and write parameters, start and stop pumping, also set timing start and stop as need, history data record save.
Quantity :

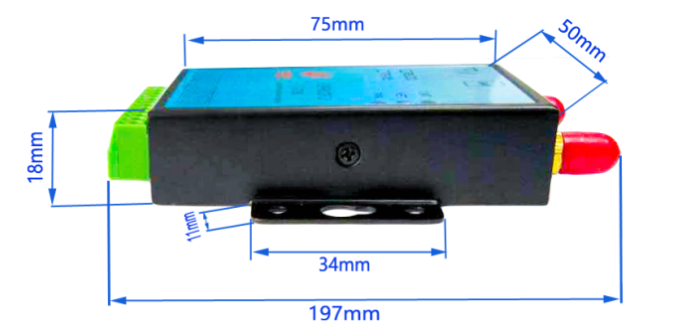

Physical Dimension
Product Features:
1. Wide voltage power supply: 9~24V.
2. Large buffer design(serial port to send and receive, built-in 64 KB of data cache),using dynamic partitioning technology to improve system operation speed.
3. Selection of 7-mode all-netcom industrial-grade 4G module, built-in reliable protocol stack to make it to be universal.
4. With high precision GPS+ Beidou positioning chip,real-time position reporting can be realized.
5. Support transparent transmission, custom registration package, heartbeat package and secondarydevelopment of cloud platform, etc.
6. Support data center dynamic domain name, fixed IP, fixed domain network access.
7. Support APN (VPN network, need to apply to the network operator)
8. Embedded modbus RTU protocol，the function of serial port server is supported.
9. Multiple hardware and software reliability design，supports automatic reconnect while the line dropped to keep the device always online.
10. Supports data center virtual serial port function, continuous connects the existing upper-computer software, to realize the plug and play.
11. Support the protocol of IOT cloud platform communication, only simple settings are needed to access our IOT cloud platform, the operator can remote manage and control the field devices by cloud platform, app, Wechat widget.
12. Supporting one digital input and two relay output.
2. Large buffer design(serial port to send and receive, built-in 64 KB of data cache),using dynamic partitioning technology to improve system operation speed.
3. Selection of 7-mode all-netcom industrial-grade 4G module, built-in reliable protocol stack to make it to be universal.
4. With high precision GPS+ Beidou positioning chip,real-time position reporting can be realized.
5. Support transparent transmission, custom registration package, heartbeat package and secondarydevelopment of cloud platform, etc.
6. Support data center dynamic domain name, fixed IP, fixed domain network access.
7. Support APN (VPN network, need to apply to the network operator)
8. Embedded modbus RTU protocol，the function of serial port server is supported.
9. Multiple hardware and software reliability design，supports automatic reconnect while the line dropped to keep the device always online.
10. Supports data center virtual serial port function, continuous connects the existing upper-computer software, to realize the plug and play.
11. Support the protocol of IOT cloud platform communication, only simple settings are needed to access our IOT cloud platform, the operator can remote manage and control the field devices by cloud platform, app, Wechat widget.
12. Supporting one digital input and two relay output.

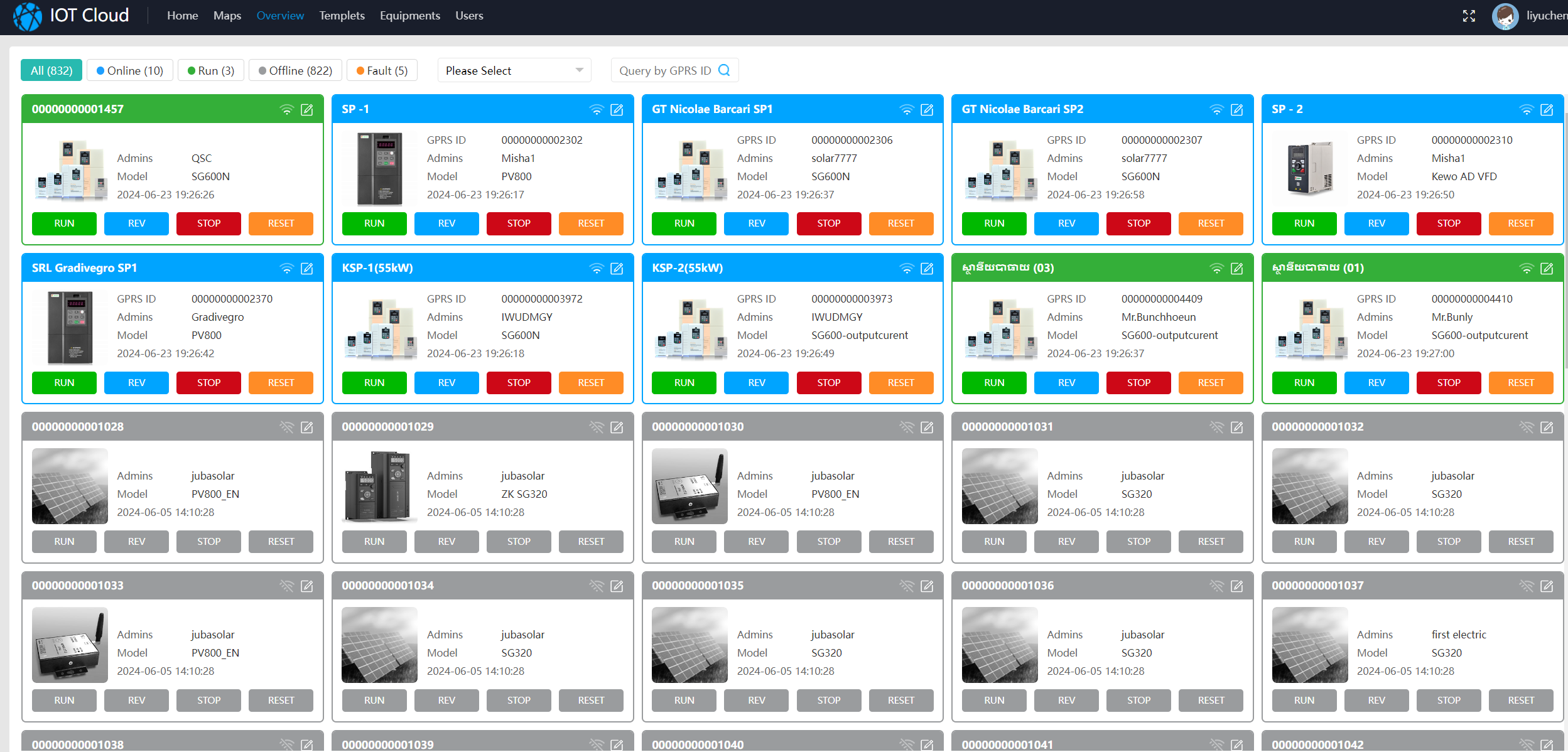

Solar Pump Inverter Detailed Status Display
