Model No: SCPM6.6/35-D48/750P
SCPM Big Flow Solar Surface Pump
The big flow solar surface pump collects solar energy through photovoltaic panels installed on the ground, converting it into electrical energy. This electrical energy then powers the motor within the pump body, driving the impeller to rotate, thus generating water flow for extraction, pressurization, or irrigation purposes. Throughout the process, it relies solely on solar energy, eliminating the need for traditional grid power or fossil fuels, making it environmentally friendly and energy-efficient.
Quantity :
Agricultural Irrigation: Providing steady water flow for vast agricultural fields, supporting crop growth and development.
Landscape Fountains: Creating stunning fountain displays in parks, plazas, and other venues, enhancing urban aesthetics.
Industrial Applications: Used in factories, mines, and other industrial settings for water recycling, cooling, and pressurization.
Domestic Water Supply: Supplying drinking water and domestic water to remote or off-grid regions.

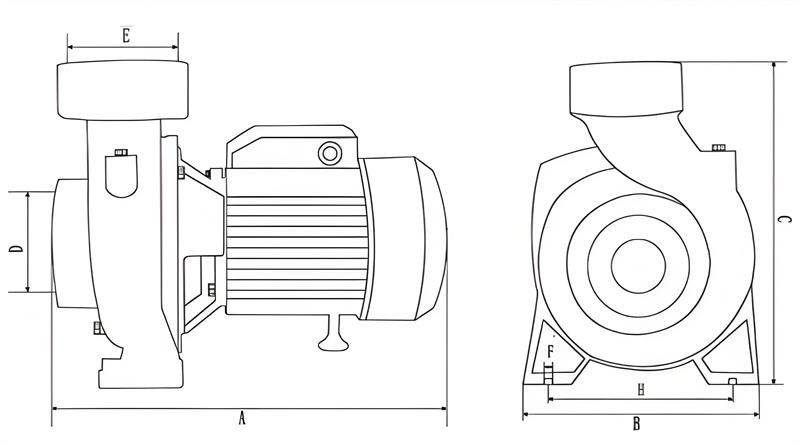

| Model | A | B | C | D | E | F | G |
| mm | mm | mm | mm | mm | mm | mm | |
| SCPM6.6/35-D48/750P | 305 | 210 | 225 | 1.25 | 1 | 10 | 120 |
| SCPM4.8/22-D48/370 | 265 | 165 | 215 | 1 | 1 | 11 | 127 |
| SCPM6.6/35-D48/750 | 305 | 190 | 235 | 1 | 1 | 9 | 160 |
| SCPM16/18-D48/750 | 310 | 185 | 235 | 1.5 | 1.5 | 9 | 155 |
| SCPM27/15-D72/1100 | 315 | 185 | 235 | 2 | 2 | 9 | 155 |
| SCPM55-17-D110-1500 | 395 | 245 | 310 | 3 | 3 | 13 | 190 |
| Material of Parts | Advantage of solar water pump | |
| Pump head: Stainless Steel/Cast iron | High efficiency because of PMSM | |
| Pump body: Stainless Steel/Cast iron | MPPT function | |
| Impeller: Stainless Steel/Brass | Longer life than normal AC water pump | |
| Bearing: NSK brand | Over-load protechion, under-load protection | |
| Cable: 3m | Lock-rotor protection, thermal proteciton | |
| Motor: Brushless DC motor | ||
SCPM Series Model List:
| Model | Pump | Solar Panels | Max Flow (m3/h) | Max Head (m) | Inlet/outlet Dia (inch) | ||
| Voltage(V) | Power(W) | VOC range(V) | Power(W) | ||||
| SCPM6.6/35-D48/750P | 48 | 750 | 50-100 | 1000- 1250 | 6.6 | 35 | 1.25x1 |
| SCPM4.8/22-D48/370 | 48 | 370 | 50-100 | 500-600 | 4.8 | 22 | 1x1 |
| SCPM6.6/35-D48/750 | 48 | 750 | 50-100 | 1000-1200 | 6.6 | 35 | 1x1 |
| SCPM16/18-D48/750 | 48 | 750 | 50-100 | 1000-1200 | 16 | 18 | 1.5x1.5 |
| SCPM27/15-D72/1100 | 72 | 1100 | 76-150 | 1500-2000 | 27 | 15 | 2x2 |
| SCPM55-17-D110/1500 | 110 | 1500 | 100-200 | 2000 | 55 | 17 | 3x3 |
| SCPM70-16-220/300-2200 | 280 | 2200 | 360-450 | 2900 | 53 | 19 | 4x4 |
