Model No: SG320-2S Series

SG320 220V 1Phase Utility Model MPPT Solar Controller

The SG320 series inverter is a low voltage AC drive of 0.3 to 400KW above rating designed to operate with energy drawn from solar panel or photovoltaic cells (PV). The inverter is customized to operate in dual supply mode, so the grid connected supply is used in the absence of energy from PV cells. This inverters functions with the latest in technology maximum power point tracking (MPPT) algorithm to derive maximum power from the PV cells at any instant.

Quantity :

Contact Now

SG320 MPPT SOLAR PUMPS INVERTER (SOLAR VFD)

Wide Voltage Design in Compliance with International Standards

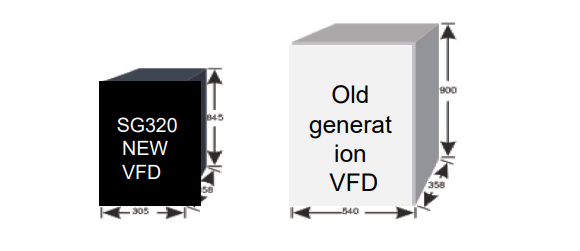

Refined Design Volume Reduced by 30%

Product Features:

1. Maximum power point tracking (MPPT) with fast response and stability operation, up to 99.80% efficiency.
2. Enable to drive for 1 phase AC pumps or 3 phase AC pumps.
3. Dry run (under load) protection, lowest speed auto tuning, Pumps maximum current protection, Minimum power input protection, Sands clearing function, Pumps phase lost protection...
4. The PQ (power/flow) performance curve enables to calculate the flow output from the pump.
5. Dual mode AC and DC power supply input is available, DC power grid priority.
6. Dedicated hardware design with dual CPU, independent air duct desige.
7. Enhanced lightning protection module.
8. GPRS remote control module for distance monitoring, remote control start pumping and stop pumping, parameters modification, and history data record...
9. Efficiency is higher than 99.8%, power factory not less than 0.96 for below 15kw inverter.

SG320-2S Series Model List:

Models	Rated power	Rated current	Max DC input
SG320-0K75G-2S	220V, 0.75kw	3.7A	450VDC
SG320-1K5G-2S	220V, 1.5kw	7.5A	450VDC
SG320-2K2G-2S	220V, 2.2kw	10A	450VDC
SG320-3K0G-2S	220V, 3.0kw	13.5A	450VDC
SG320-4K0GB-2S	220V, 4.0kw	16.5A	450VDC

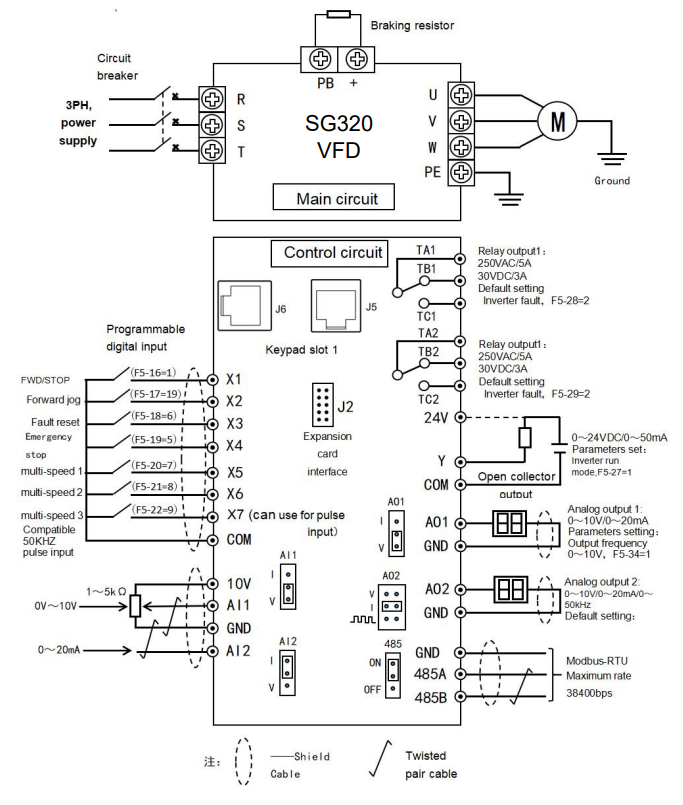

Application Case:

Items		Specification
Control mode	Control mode	SVC in open loop	V/F control	Close loop vector control
	Starting torque	0.5Hz 180%	0.5Hz 150%	0.00Hz 180%
	Speed adjust range	1:100	1:100	1:1000
	Speed stabilizing precision			±0.02%
	Torque precision	NO	NO	±5%
	Motor type	General induction motor Permanent magnet synchronous motor(PMSM )* High speed frequency
Function design	Highest frequency	General vector control: 400Hz V/f control: 4000Hz
	Frequency resolution	Digital setting: 0 .01Hz analog setting: maximum x 0.025%
	Carrier frequency	0. 5K~ 16KHz, the carrie frequency can be adjusted by temperature automatically.
	Frequency reference setting method	Digital of Control panel, analog AI1, Al2, potentiometer of control panel, UP/DN control, communication, PLC pulse frequency.
	Acceleration./deceleration characteristic	Linear curve and S curve accel. /decel. mode, range of time: 0.0 to 65000S.
	V/F curve	3 mode: linear, multiple points, N Power.
	V/F separation	2 times separation: totally separation, half separation.
	DC braking	DC braking frequency: 0 .0 to 300Hz, DC braking current: 0.0% to 100%.
	Braking unit	Standard built in for up to 4T22G (22kw), optional built it for ~4T75G (30kw to 75kw), external built for above 4T93G (95kw).
	Jog function	Job frequency range: 0.0 to 50.0Hz, the acceleration and decelerationtime of Jog.
	Configure PID function	Easy to perform pressure, flow, temperature close loop control.
	PLC multiple speed	To achieve 16 segment speed running through built in PLC or terminal control.
	Common DC bus	Mutiple drivesuse one DC bus for energy balance.
	Auto voltage regulation (AVR)	Enable to keep output voltage constant when grid fluctuation.
	Over load tolerance capability	G type mode: 150% rated current for 60s, 180% rated current for 3s, P type Model: 120% rated current for 60s, 150% rated current for 3s.
	Stall protection control when over current, over voltage	Carry out limiing automation for running current, voltage to prevent over current, over voltage frequently.
	Rapid current limit function	Minimize the IGBT module broken to protect the AC Drive, maximum reduce the over current fault.
	Torque limit and torque control	"Excavator" characterstics,torque limit automaticall during motor running. Torque control is available in close loop vector control mode.
Features	Friendly interace	Display "Hello" when power on.
	Multiple function key JOG button	It can set for Forward Jog, reverse Jog, forward/reverse switch.
	Timing control function	A total running time and total running time calculating.
	2 group motor parameters	To achieve two motor switch over freely, control mode is selectable.
	Motor over heat protection	Accepting motor temperature sensor signal input via Al1 terminals.
	Multiple kinds encoder	Compatible collectorPG, differentiaIPG, and rotary transformerEncoder(resolver).
	Command source	Control panel, control terminals, series communication, switch freely.
	Frequency source	Digitai sting, analog crrentvoltage, pulse setting, serial _communication, main and auxiliary combination.
	Protection function	Short circuit detect whenpower on, input/output phase loss, over voltage, over current, under voltage, over heat, over load protection.
Environment	Application site	Indoor, free of exposure to sunlight, no dusty, no corrosive, no inflammable gas, no oil and water vapor, and water dipping.
	Altitude	Lower 1000m
	Environment temperature	-10°C~+40°C, power derated for 40°C~50°C, rated current derated 1% for 1°C increasing.
	Humidity	Less than 95%, no water condense.
	Storage	-40~+70°C
	Ip rating	IP20
