Model No: SG600-2S Series
SG600 220V 1Phase Hot Selling Solar Inverter
SG600 series solar pump inverter developed based on S100 high performance vector control frequency inverter. Solar DC and Grid/Generator AC can be input at the same time, no need add the AC/DC switch, as hybrid inverter works all day. Power Range: 220V, 0.75KW to 75KW
Quantity :

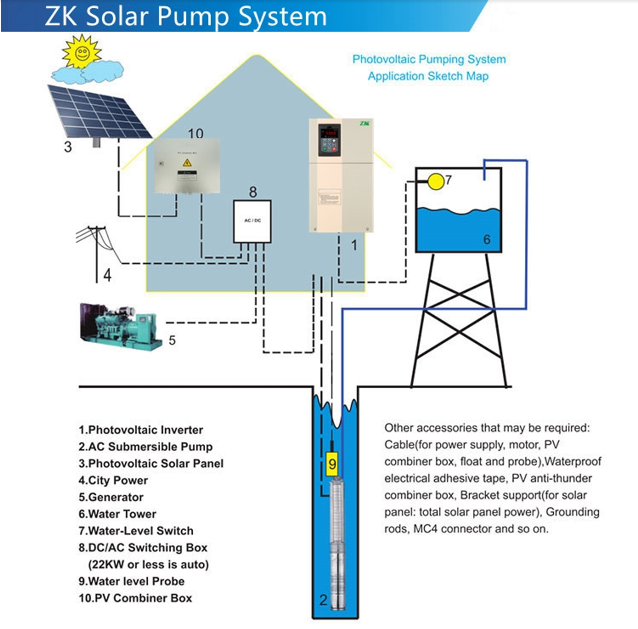

ZK Solar Pump System

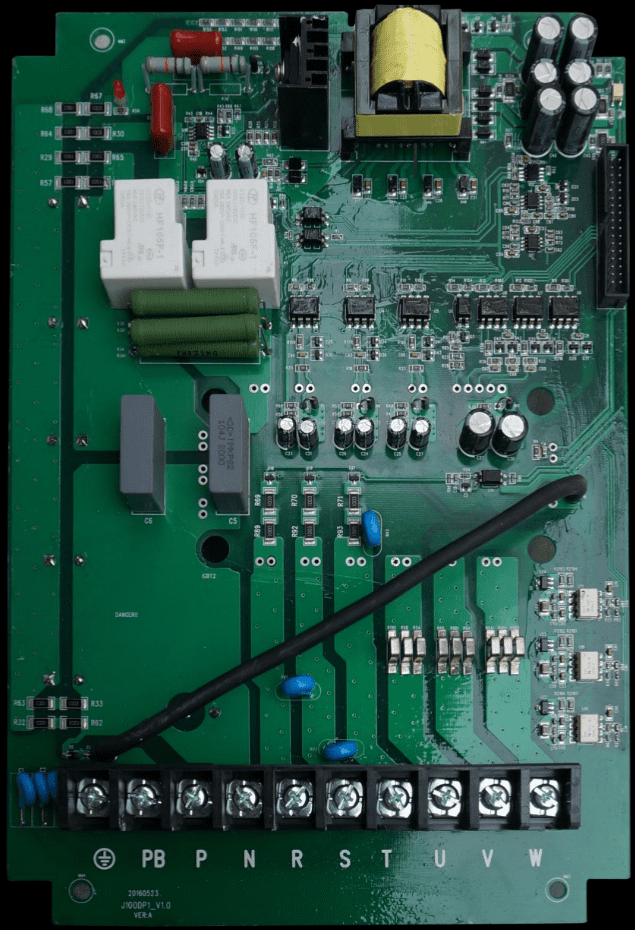

Circuit Board Design

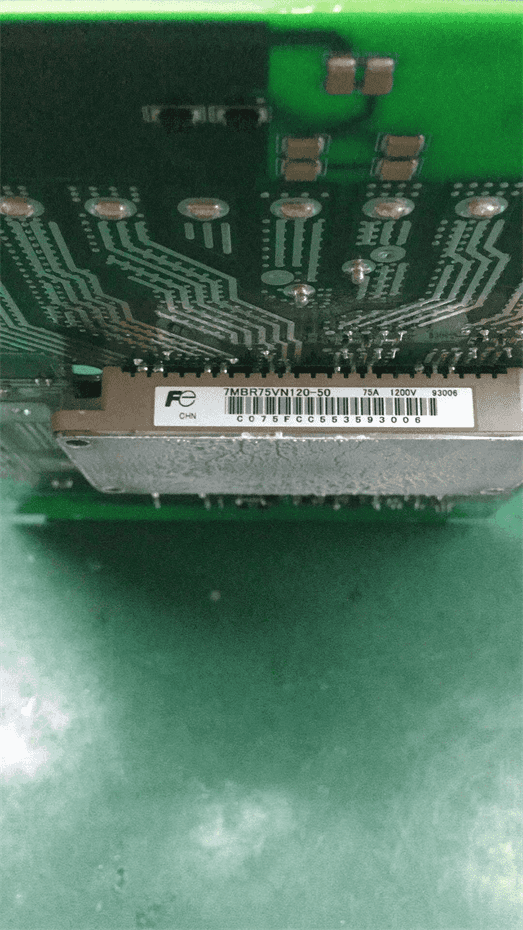

Fuji Brand IGBT
Product Features:
1. MPPT: More than 99% efficiency.
2. Solar DC and Grid AC input at same time, hybrid inverter.
3. Drives well all kind of pumps, AM, PMSM. 1/3 phase 220v pumps both, submersible and surface pumps both.
4. Automatic detect the working DC voltage, no need set manual.
5. Lowest stop frequency protection.
6. Automatic sleep/wake up function.
7. Flow and generated energy calculating and monitoring.
8. Dry run, water tank detect, Over/under voltage, gound short circuit, phase loss, over current/load etc.
9. Built in RS485 interface, connect Wifi or 4G GPRS remote controller.
SG600-2S Series Model List:
| No. | Model No. | Rate current (A) | Output voltage (VAC) | Rated power (KW) | Suggest Voc(VDC) |
| 2S series 150 to 450 VDC or 220/240VAC input, Vmp 310VDC, Voc 380VDC | |||||
| 1 | SG600-0K7GB-2S | 4A | 220V/240V | 0.75KW | 373V |
| 2 | SG600-1K5GB-2S | 7A | 220V/240V | 1.5KW | 373V |
| 3 | SG600-2K2GB-2S | 10A | 220V/240V | 2.2KW | 373V |
| 4 | SG600-4K0GB-2S | 16A | 220V/240V | 4.0KW | 373V |
| ** | SG600-***GB-2S | ** | 220V/240V | Up to 75KW | 373V |
Application Case:
