Model No: SG600-4T Series
SG600 380V 3Phase Hot Selling Solar Inverter
SG600 series solar pump inverter developed based on S100 high performance vector control frequency inverter. Solar DC and Grid/Generator AC can be input at the same time, no need add the AC/DC switch, as hybrid inverter works all day. Power Range: 380V/440V/480V, 0.75KW to 250KW
Quantity :

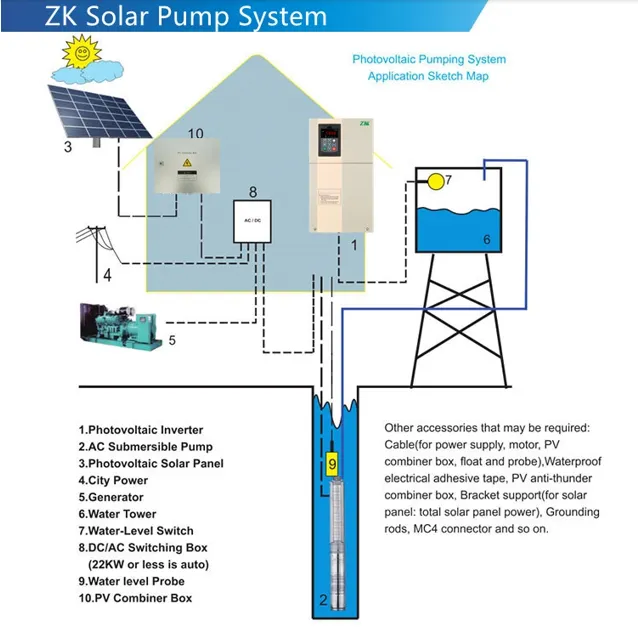

ZK Solar Pump System

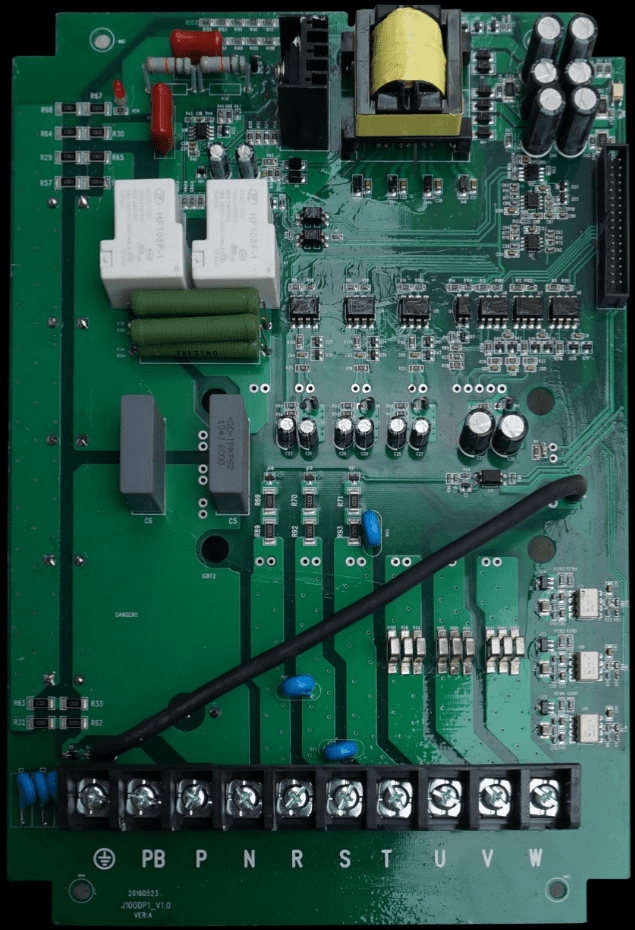

Circuit Board Design

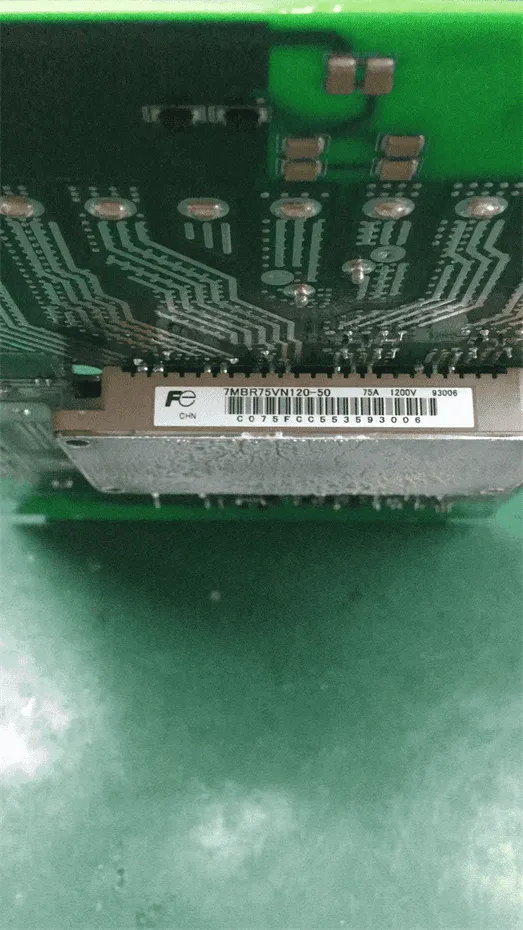

Fuji Brand IGBT
Product Features:
1. Suitable for most AC solar pumps, we manufacturing single phase solar pump inverter and three phase solar pump contrllers.
2. Hybrid solar pump inverter, compatible with DC (solar panel) power input or AC (generator/ on-grid utility), or DC+AC Input at the same time(Hybrid Function), available for 24 hours of running.
3. Large water flow, output maximum water in the same condition, high efficiency for your solar pump systems.
4. Soft-start, variable speed drive with most advanced automatic MPPT technology, efficiency over 99.9%.
5. Support Remote Monitoring function. (optional)
6. Cost-effective, operation without battery.
7. Easy to use, one-button start/stop, no need for setting.
8. All-round protection, including over-current, under-voltage, over-load, and weak sunshine warning/over-heating/dry running. (over 30 kinds of protections)
9. Reliable, over 10 years of market-proven experience of inverter producing technology.
2. Hybrid solar pump inverter, compatible with DC (solar panel) power input or AC (generator/ on-grid utility), or DC+AC Input at the same time(Hybrid Function), available for 24 hours of running.
3. Large water flow, output maximum water in the same condition, high efficiency for your solar pump systems.
4. Soft-start, variable speed drive with most advanced automatic MPPT technology, efficiency over 99.9%.
5. Support Remote Monitoring function. (optional)
6. Cost-effective, operation without battery.
7. Easy to use, one-button start/stop, no need for setting.
8. All-round protection, including over-current, under-voltage, over-load, and weak sunshine warning/over-heating/dry running. (over 30 kinds of protections)
9. Reliable, over 10 years of market-proven experience of inverter producing technology.
SG600-4T Series Model List:
| No. | Model No. | Rate current (A) | Output voltage (VAC) | Rated power (KW) | Suggest Voc(VDC) |
| 4T series 250 to 800/900 VDC or 380/480VAC input, Vmp 540VDC, Voc 650VDC | |||||
| 1 | SG600-0K7GB-4T | 2.5A | 380V-440V/480V | 0.75KW | 643V |
| 2 | SG600-1K5GB-4T | 3.7A | 380V-440V/480V | 1.5KW | 643V |
| 3 | SG600-2K2GB-4T | 5A | 380V-440V/480V | 2.2KW | 643V |
| 4 | SG600-4K0GB-4T | 10A | 380V-440V/480V | 4.0KW | 643V |
| 5 | SG600--5K5GB-4T | 13A | 380V-440V/480V | 5.5KW | 643V |
| 6 | SG600-7K5GB-4T | 17A | 380V-440V/480V | 7.5KW | 643V |
| 7 | SG600-011GB-4T | 22A | 380V-440V/480V | 11KW | 643V |
| 8 | SG600-015GB-4T | 30A | 380V-440V/480V | 15KW | 643V |
| 9 | SG600-018GB-4T | 37A | 380V-440V/480V | 18KW | 643V |
| 10 | SG600-022GB-4T | 45A | 380V-440V/480V | 22KW | 643V |
| 11 | SG600-030GB-4T | 60A | 380V-440V/480V | 30KW | 643V |
| 12 | SG600-037GB-4T | 75A | 380V-440V/480V | 37KW | 643V |
| 13 | SG600-045GB-4T | 91A | 380V-440V/480V | 45KW | 643V |
| 14 | SG600-055GB-4T | 110A | 380V-440V/480V | 55KW | 643V |
| 15 | SG600-075GB-4T | 150A | 380V-440V/480V | 75KW | 643V |
| 16 | SG600-090GB-4T | 180A | 380V-440V/480V | 90KW | 643V |
| 17 | SG600-110GB-4T | 220A | 380V-440V/480V | 110KW | 643V |
| 18 | SG600-**GB-4T | ** | 380V-440V/480V | Up to 250KW | 643V |
| 2S4T series 1PHASE 220VAC, 250VDC-800VDC input, 3phase 380/480VAC output | |||||
| 19 | SG600-4K0GB-2S4T | 10A | 380V-440V/480V | 4KW | 643V |
| 20 | SG600-5K5GB-2S4T | 13A | 380V-440V/480V | 5.5KW | 643V |
| 21 | SG600-7K5GB-2S4T | 17A | 380V-440V/480V | 7.5KW | 643V |
