Model No: SG600 IP54 Series
SG600 Series IP54 Waterproof Solar Inverter
IP54 Waterproof Solar Pump Inverter offers moderate dust protection and protection against splashing water, making it suitable for a wide range of outdoor applications involving solar-powered water pumps. New book structure design for saves customer's electrical cabinet space and electrical cabinet cost. Steel casing and independent air duct for good heat dissipation.
Inverter Power Range:
220V: 0.75KW to 2.2KW
380V: 0.75KW to 7.5KW
IP54 model is avaliable: 2.2KW to 22KW
Inverter Power Range:
220V: 0.75KW to 2.2KW
380V: 0.75KW to 7.5KW
IP54 model is avaliable: 2.2KW to 22KW
Quantity :

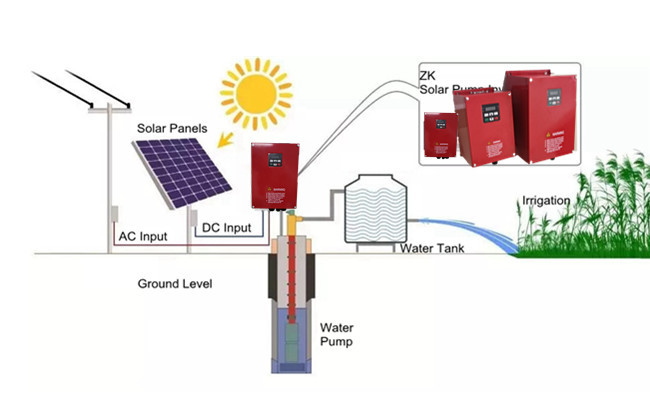

ZK Solar Pump System
Product Features:
1. Dust and Water Protection: The IP54 rating ensures that the inverter is protected against harmful ingress of dust and splashing water from any direction. This makes it suitable for outdoor applications where dust and water exposure are common.
2. Durable Construction: The inverter is built with durable materials and components that can withstand harsh environmental conditions, including dust, splashing water, and temperature fluctuations.
3. Efficient Operation: Despite its waterproof and dustproof design, the inverter maintains high efficiency in converting solar energy into usable power for the water pump.
4. Easy Installation and Maintenance: The waterproof design simplifies installation and maintenance in outdoor environments. It also reduces the risk of damage due to accidental water ingress during installation or maintenance procedures.
5. Reliable Performance: The inverter's waterproof and dustproof capabilities ensure reliable performance over time, even in demanding outdoor conditions.
6. Cost-Effectiveness: While offering superior protection and durability, IP54 Waterproof Solar Pump Inverters are typically priced competitively, providing a cost-effective solution for outdoor solar water pumping applications.
SG600 Series Model List:
| No. | Model No. | Rate current (A) | Output voltage (VAC) | Rated power (KW) | Suggest Voc(VDC) |
| 2S series 150 to 450 VDC or 220/240VAC input, Vmp 310VDC, Voc 380VDC | |||||
| 1 | SG600-0K7GB-2S | 4A | 220V/240V | 0.75KW | 373V |
| 2 | SG600-1K5GB-2S | 7A | 220V/240V | 1.5KW | 373V |
| 3 | SG600-2K2GB-2S | 10A | 220V/240V | 2.2KW | 373V |
| 4 | SG600-4K0GB-2S | 16A | 220V/240V | 4.0KW | 373V |
| ** | SG600-***GB-2S | ** | 220V/240V | Up to 75KW | 373V |
| 4T series 250 to 800/900 VDC or 380/480VAC input, Vmp 540VDC, Voc 650VDC | |||||
| 5 | SG600-0K7GB-4T | 2.5A | 380V-440V/480V | 0.75KW | 643V |
| 6 | SG600-1K5GB-4T | 3.7A | 380V-440V/480V | 1.5KW | 643V |
| 7 | SG600-2K2GB-4T | 5A | 380V-440V/480V | 2.2KW | 643V |
| 8 | SG600-4K0GB-4T | 10A | 380V-440V/480V | 4.0KW | 643V |
| 9 | SG600--5K5GB-4T | 13A | 380V-440V/480V | 5.5KW | 643V |
| 10 | SG600-7K5GB-4T | 17A | 380V-440V/480V | 7.5KW | 643V |
| 11 | SG600-011GB-4T | 22A | 380V-440V/480V | 11KW | 643V |
| 12 | SG600-015GB-4T | 30A | 380V-440V/480V | 15KW | 643V |
| 13 | SG600-018GB-4T | 37A | 380V-440V/480V | 18KW | 643V |
| 14 | SG600-022GB-4T | 45A | 380V-440V/480V | 22KW | 643V |
| 15 | SG600-030GB-4T | 60A | 380V-440V/480V | 30KW | 643V |
| 16 | SG600-037GB-4T | 75A | 380V-440V/480V | 37KW | 643V |
| 17 | SG600-045GB-4T | 91A | 380V-440V/480V | 45KW | 643V |
| 18 | SG600-055GB-4T | 110A | 380V-440V/480V | 55KW | 643V |
| 19 | SG600-075GB-4T | 150A | 380V-440V/480V | 75KW | 643V |
| 20 | SG600-090GB-4T | 180A | 380V-440V/480V | 90KW | 643V |
| 21 | SG600-110GB-4T | 220A | 380V-440V/480V | 110KW | 643V |
| 22 | SG600-**GB-4T | ** | 380V-440V/480V | Up to 250KW | 643V |
| 2S4T model: 1PHASE 220VAC, 250VDC-800VDC input, 3phase 380/480VAC output. | |||||
| 23 | SG600-4K0GB-2S4T | 10A | 380V-440V/480V | 4KW | 643V |
| 24 | SG600-5K5GB-2S4T | 13A | 380V-440V/480V | 5.5KW | 643V |
| 25 | SG600-7K5GB-2S4T | 17A | 380V-440V/480V | 7.5KW | 643V |
