Model No: SU100-4T Series

SU100 380V 3Phase High Performance Solar Pump Controller

The latest generation of high-performance inverters. SU100 series V/F control frequency inverter. SU100 series MPPT solar pump inverter, etc. With speed control, torque compensation, slip compensation, energy-saving control, self-learning and other advanced application functions, It can drive asynchronous motors and permanent magnet synchronous motors.

Quantity :

Contact Now

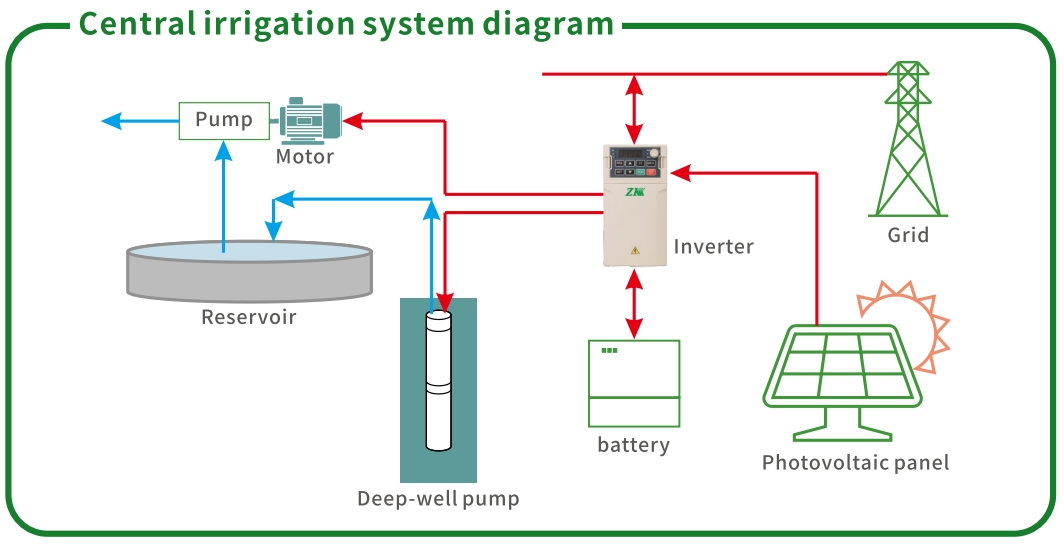

SU100 Series Solar Inverter Central Irrigation System Diagram

SU100 Series solar pump inverter Central Irrigation System Diagram

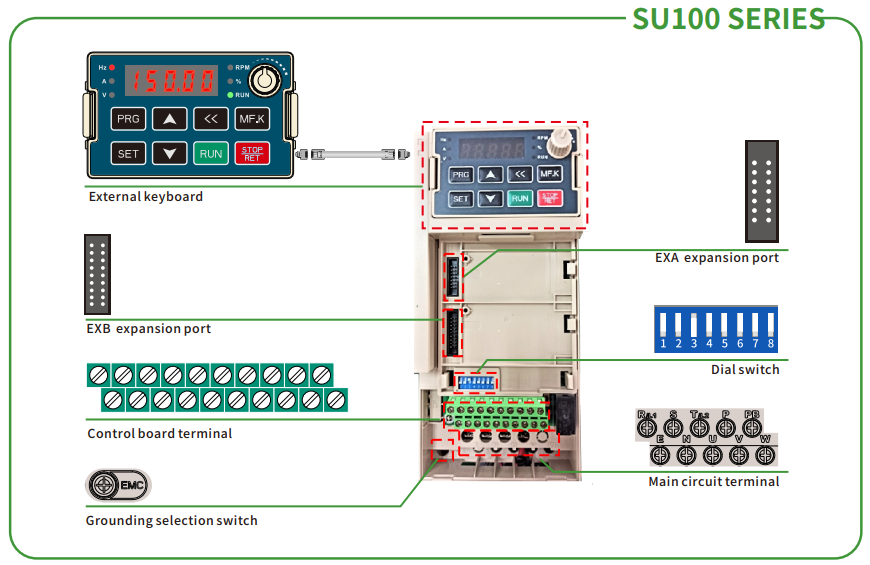

SU100 Series Solar Inverter Appearance Details

SU100 Series solar pump inverter Appearance Details

Product Features:

1. Maximum power point tracking (MPPT), MPPT efficiency around 99%.
2. Suitable for high-speed, high-frequency pump, PMSM, and synchronous motors run without tuning.
3. Compatible with dual-mode AC and DC power input at same time. When the photovoltaic panel energy is insufficient, it will automatically cut into the AC power grid.

When the photovoltaic panel energy is sufficient, the AC power grid will automatically cut out.
4. Self-defined digital and analog level sensor for water full and low water protection.
5. Imported Infineon and other IGBT modules to ensure product quality.
6. Remote control module, used for remote monitoring, control, parameter modification, etc.
7. Full water protection. Inverter judges according to the input liquid level sensor signal and effectively controls the liquid level to
prevent water overflow.

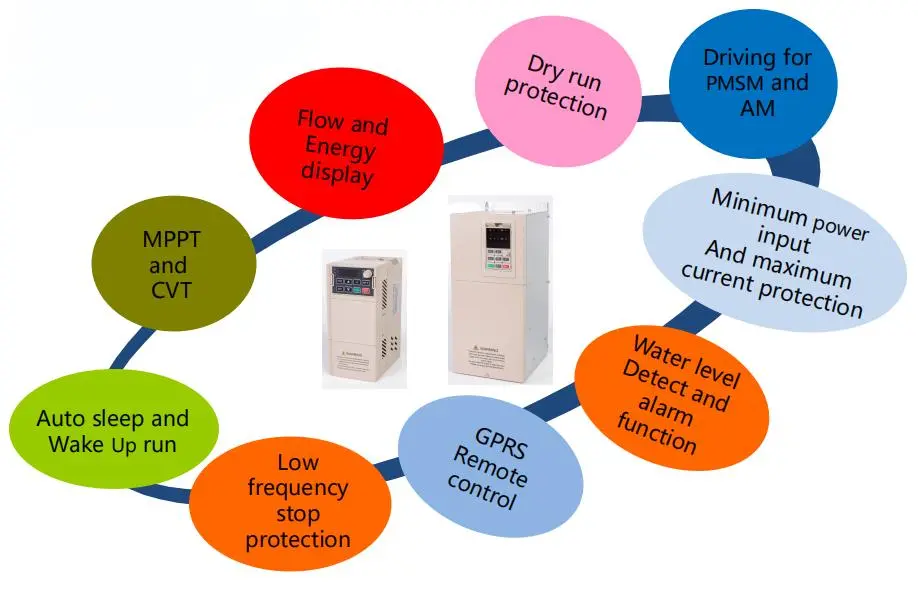

SU100 Series Solar Inverter Main Features

SU100 Series solar pump inverter Main Features

SU100-4T Series Model List:

Models	Rate current (A)	Rate Power (KW)	Input DC range (VDC)	Best Voc (VDC)	Output AC Voltage (VAC)
380V D3 Type, 250-800VDC input, 3phase 0-380VAC output
SU100-D3-R 75G-B	2.5A	0.75KW	250-800	650VDC	0-380
SU100-D3-1R5G-B	3.8A	1. .5KW	250-800	650VDC	0-380
SU100-D3-2R2G-B	5.1A	2.2KW	250-800	650VDC	0-380
SU100-D3-004G-B	9A	4.0KW	250-800	650VDC	0-380
SU100-D3-5R5G-B	13A	5.5KW	250-800	650VDC	0-380
SU100-D3-7R5G-B	17A	7.5KW	250-800	650VDC	0-380
SU100-D3-011G-B	25A	11KW	250-800	650VDC	0-380
SU100-D3-015G-B	32A	15KW	250-800	650VDC	0-380
SU100-D3-018G-B	37A	18KW	250-800	650VDC	0-380
SU100-D3-022G-B	45A	22KW	250-800	650VDC	0-380
SU100-D3-030G	60A	30KW	250-800	650VDC	0-380
SU100-D3-037G	75A	37KW	250-800	650VDC	0-380
SU100-D3-045G	91A	45KW	250-800	650VDC	0-380
SU100-D3-055G	112A	55KW	250-800	650VDC	0-380
SU100-D3-075G	150A	75KW	250-800	650VDC	0-380
SU100-D3-093G	170A	93 KW	250-800	650VDC	0-380
SU100-D3-110G	210A	110KW	250-800	650VDC	0-380
SU100-D3-132G	260A	132KW	250-800	650VDC	0-380
SU100-D3-160G	320A	160KW	250-800	650VDC	0-380
SU100-D3-185G	360A	185KW	250-800	650VDC	0-380
SU100-D3-200G	400A	200KW	250-800	650VDC	0-380
SU100-D3-220G	430A	220KW	250-800	650VDC	0-380
SU100-D3-250G	490A	250KW	250-800	650VDC	0-380
SU100-D3-280G	520A	280KW	250-800	650VDC	0-380
SU100-D3-315G	585A	315KW	250-800	650VDC	0-380
SU100-D3-355G	650A	355KW	250-800	650VDC	0-380
SU100-D3-400G	725A	400KW	250-800	650VDC	0-380
SU100-D3-***G	depend	Max to 500KW	250-800	650VDC	0-380

Item		Specification
Power input	Voltage, frequency	D1: 90VDC-400VDC or 110V±15% AC, 50/60HZ; D2: 150VDC-450VDC or 220V±15%AC, 50/60HZ; D3: 250VDC-780VDC or 380V±15%AC, 50/60Hz; T3: 350VDC-780VDC or 380V±15%AC, 50/60HZ;
	Allowable fluctuations	Voltage Unbalance Rate:<3%; Frequency:±5%; Aberration Rate: Asiec61800-2
	Power factor	≥0.94(with DC reactor)
	Efficiency	≥96%
Output	Output voltage	Output underrated condition: 3 phase, 0~input voltage, inaccuracy<5%
	Output frequency	G type:0~600Hz
	Output frequency	Max frequency±0.5%
	Overload capacity	G type: 150% rated current/1 min, 180% rated current/10s, 200% rated current/0.5s
Main control perfor mance	Motor control mode	MPPT, V/F without PG, VC without PG, VC with PG
	Speed control range	Vector control without PG, rated load 1:100; Vector control with PG, rated load 1:1000;
	Steady speed accuracy	VC without PG: ≤2% rated synchronized speed; VC with PG: ≤0.05% rated synchronized speed
	Starting torque	VC without PG: when 0.5Hz, 150% rated torque; VC with PG: when 0Hz, 200% rated torque
	Torque response	VC without PG:≤20ms;VC with PG:≤10ms
	Frequency accuracy	Digit setting: max frequency x ±0.01%; Analog setting: max frequency x ±0.2%
	Frequency resolution	Digital setting: 0.01Hz; Analog setting: maximum frequency x 0.05%
Product basic functions	Torque boost capacity	Auto torque upgrade 0.0%~ 100.0%; Manual torque upgrade 0.0%~30.0%
	V/F curve	4 modes: one linearity torque characteristic curve, one self-setting V/F curvemode, one drop torque characteristic curve(1.1- 2.0 powers), and square V/F curve mode.
	Acceleration/ Deceleration curve	2 modes: linear Acceleration/Deceleration and s curve Acceleration/Deceleration. 4 sets ofACC/DEC, time unit 0.01s selectable, longest time: 650.00s.
	Rated output voltage	Rely on power supply voltage compensate function, while motor rated voltage is 100%, set it at the range of 50-100% (output can not over input voltage).
	Voltage auto-adjustment	While power supply voltage fluctuates, it can auto-keep constant output voltage
	Auto energy-saving running	While under V/F control mode, according to load situation, auto-optimize output voltage to save energy.
	Standard functions	PID control, seedtrack, power off restar, jump frequency, upper/lower frequency limit control, program operation, multi-speed, RS485, analog output, frequency impulse output.
	Frequency setting channels	Keyboard digital setting, keyboard potentiometer, Analog voltage/current teminal AI1, AI2, Communication given and multi-channel terminal selection, Main and axiliary channel combination, expansion card, supporting different modes switch.
	Feedback input channel	Voltage/Current Terminal Al1, Voltage/Current Terminal Al2, Communication given, pulse input X5.
	Running command channel	Operation panel given, external terminal given, communication given, expansion card given
	Input command signal	Start, stop, FWD/REV, JOG, multi- step speed, reset, ACC/DEC time selection, frequency given channel selection, exterior fault alarm.
Protective function		Over voltage, under-oltage, current limit, over-current, overload, electric thermal relay, overheat, over voltage stall, data protection, rapid speed protection, input/output phase failure protection.
Envir onment	Install place	altitde ≤ 100m above 1000m down the rated amount, each increas of 100m down the rated mountof 1%; no condensation, ice ,rain, snow, hail; solar radiation below 700W/m², air pressure 70-106 kPa.
	Temperature, humidity	-10~ +50°C, derating above 40°C, maximum temperature 60°C (no-load operation) 5% to 95% RH (non-condensing)
	Vibration	When 9~200Hz, 5.9m/s2(0.6g)
	Storage temperature	-30~+60°C
	Protection grade	IP20
	Cooling method	Forced air cooling
