Model No: SU10M-1T Series

SU10M 110V 3Phase High Cost-effective Inverter For Solar Pump

The appearance is simple and generous, narrow structure design saves installation space. Excellent MPPT function enables 99.9% efficiency to automatically track light throughout the day. Can drive a variety of different types of pumps (permanent magnet synchronous, asynchronous, single-phase motor, etc.). Higher performance and multiple protection functions. Isolation duct design, improve dust resistance.

Quantity :

Contact Now

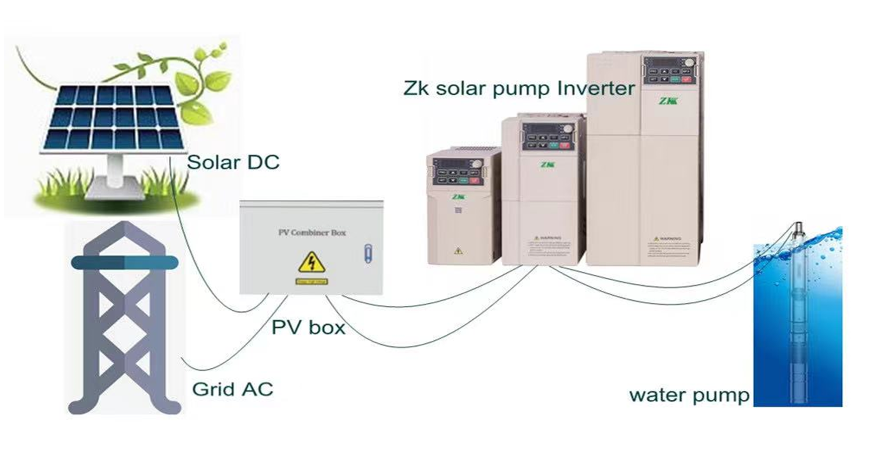

Solar Pump System: Solar Panels, Solar Pump Inverter, Water Pump solar pump inverter system

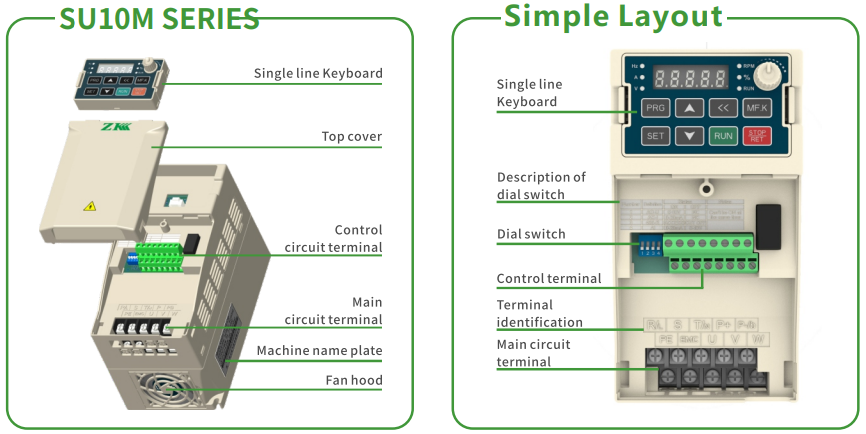

SU10M Series Inverter Appearance Details

SU10M Series solar pump inverter Appearance Details

Product Features:

1. Solid process to ensure quality. Adopt imported quality three proofing paint and thick spraying to ensure long-term environmental pollution resistance.

2. Independent air duct design. High protection: completely independent air duct, scientific layout inside the machine, taking into account the heat dissipation of high power devices.

3. Standard pluggable keyboard. The standard keyboard can be imported, which can easily meet the flexible requirements for the keyboard installation position on the site of various cabinets.

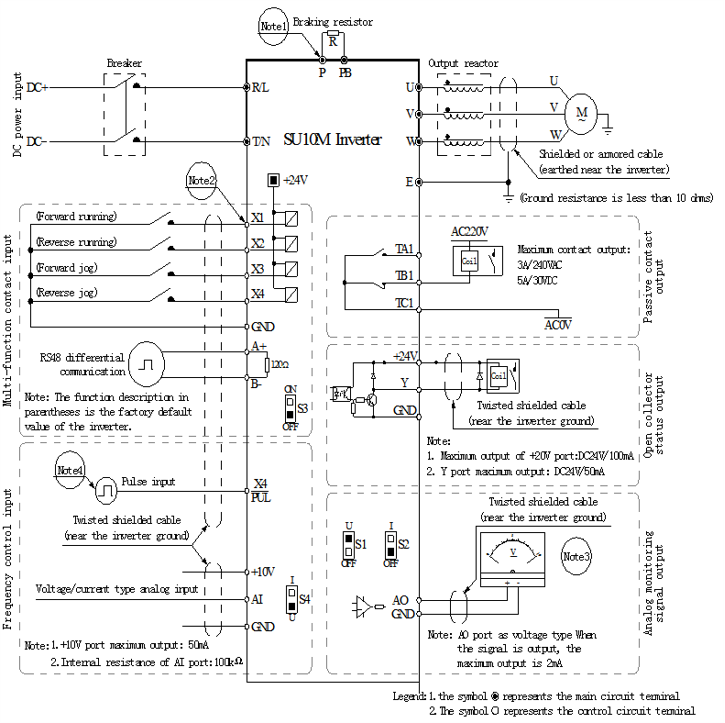

4. Terminal block. SU10M machine terminal layout is simple and beautiful, the overall style has the characteristics of calm atmosphere.
5. Simple and flexible. LED interface is friendly and simple setup parameter. Support remote operation and monitoring by mobile APP or PC web, easy maintenance.

6. Compatible with dual-mode AC and DC power input at same time. When the photovoltaic panel energy is insufficient, it will automatically cut into the AC power grid. When the photovoltaic panel energy is sufficient, the AC power grid will automatically cut out.

7. Smart Internet of Things. Powerful GPRS Internet of Things, and users could master the system state at anytime and anywhere.

8. Hige-efficient MPPT. The software can quickly detect changes in bus voltage and then ensure the maximum output power of Solar panels when sunlight and temperature change.

9. Water dry protection. The frequency inverter will monitor the load current and operating frequency of the motor in real time.
When the water pump is idling, it will trigger the frequency inverter alarm to effectively protect the water pump from burning due to idling and reduce the loss of end customers.

Solid Process to Ensure Quality

Independent Air Duct Design

Smart Internet of Things

SU10M-1T Series Model List:

Models	Rate current(A)	Output voltage(3PH VAC)	Applicable for pumps(KW)	Recommend Voc voltage (VDC)
Mini type D1: 90V DC to 400V DC or 110V±15% AC 50/60Hz input, 3 Phase 0-110V AC output
SU10M-D1-R75G-B	7A	0-110V	0.75kw	175V to 380V
SU10M-D1-1R5G-B	10A	0-110V	1.5kw	175V to 380V

Item		Specification
Power input	Voltage, frequency	D1: 90VDC-400VDC or 110V±15% AC, 50/60HZ; D2: 150VDC-450VDC or 220V±15%AC, 50/60HZ; D3: 250VDC-780VDC or 380V±15%AC, 50/60Hz; T3: 350VDC-780VDC or 380V±15%AC, 50/60HZ;
	Allowable fluctuations	Voltage Unbalance Rate:<3%; Frequency:±5%; Aberration Rate: Asiec61800-2
	Power factor	≥0.94(with DC reactor)
	Efficiency	≥96%
Output	Output voltage	Output underrated condition: 3 phase, 0~input voltage, inaccuracy<5%
	Output frequency	G type:0~600Hz
	Output frequency	Max frequency±0.5%
	Overload capacity	G type: 150% rated current/1 min, 180% rated current/10s, 200% rated current/0.5s
Main control perfor mance	Motor control mode	MPPT, V/F without PG, VC without PG, VC with PG
	Speed control range	Vector control without PG, rated load 1:100; Vector control with PG, rated load 1:1000;
	Steady speed accuracy	VC without PG: ≤2% rated synchronized speed; VC with PG: ≤0.05% rated synchronized speed
	Starting torque	VC without PG: when 0.5Hz, 150% rated torque; VC with PG: when 0Hz, 200% rated torque
	Torque response	VC without PG:≤20ms;VC with PG:≤10ms
	Frequency accuracy	Digit setting: max frequency x ±0.01%; Analog setting: max frequency x ±0.2%
	Frequency resolution	Digital setting: 0.01Hz; Analog setting: maximum frequency x 0.05%
Product basic functions	Torque boost capacity	Auto torque upgrade 0.0%~ 100.0%; Manual torque upgrade 0.0%~30.0%
	V/F curve	4 modes: one linearity torque characteristic curve, one self-setting V/F curvemode, one drop torque characteristic curve(1.1- 2.0 powers), and square V/F curve mode.
	Acceleration/ Deceleration curve	2 modes: linear Acceleration/Deceleration and s curve Acceleration/Deceleration. 4 sets ofACC/DEC, time unit 0.01s selectable, longest time: 650.00s.
	Rated output voltage	Rely on power supply voltage compensate function, while motor rated voltage is 100%, set it at the range of 50-100% (output can not over input voltage).
	Voltage auto-adjustment	While power supply voltage fluctuates, it can auto-keep constant output voltage
	Auto energy-saving running	While under V/F control mode, according to load situation, auto-optimize output voltage to save energy.
	Standard functions	PID control, seedtrack, power off restar, jump frequency, upper/lower frequency limit control, program operation, multi-speed, RS485, analog output, frequency impulse output.
	Frequency setting channels	Keyboard digital setting, keyboard potentiometer, Analog voltage/current teminal AI1, AI2, Communication given and multi-channel terminal selection, Main and axiliary channel combination, expansion card, supporting different modes switch.
	Feedback input channel	Voltage/Current Terminal Al1, Voltage/Current Terminal Al2, Communication given, pulse input X5.
	Running command channel	Operation panel given, external terminal given, communication given, expansion card given
	Input command signal	Start, stop, FWD/REV, JOG, multi- step speed, reset, ACC/DEC time selection, frequency given channel selection, exterior fault alarm.
Protective function		Over voltage, under-oltage, current limit, over-current, overload, electric thermal relay, overheat, over voltage stall, data protection, rapid speed protection, input/output phase failure protection.
Envir onment	Install place	altitde ≤ 100m above 1000m down the rated amount, each increas of 100m down the rated mountof 1%; no condensation, ice ,rain, snow, hail; solar radiation below 700W/m², air pressure 70-106 kPa.
	Temperature, humidity	-10~ +50°C, derating above 40°C, maximum temperature 60°C (no-load operation) 5% to 95% RH (non-condensing)
	Vibration	When 9~200Hz, 5.9m/s2(0.6g)
	Storage temperature	-30~+60°C
	Protection grade	IP20
	Cooling method	Forced air cooling
