Model No: SU10M-2T Series

SU10M 220V 3Phase High Cost-effective Inverter For Solar Pump

The appearance is simple and generous, narrow structure design saves installation space. Excellent MPPT function enables 99.9% efficiency to automatically track light throughout the day. Can drive a variety of different types of pumps (permanent magnet synchronous, asynchronous, single-phase motor, etc.). Higher performance and multiple protection functions. Isolation duct design, improve dust resistance.

Quantity :

Contact Now

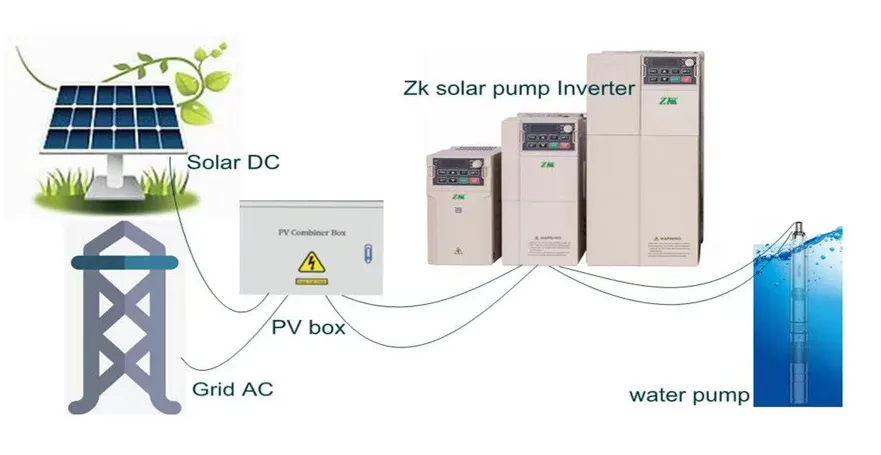

Solar Pump System: Solar Panels, Solar Pump Inverter, Water Pump solar pump inverter system

SU10M Series Inverter Appearance Details

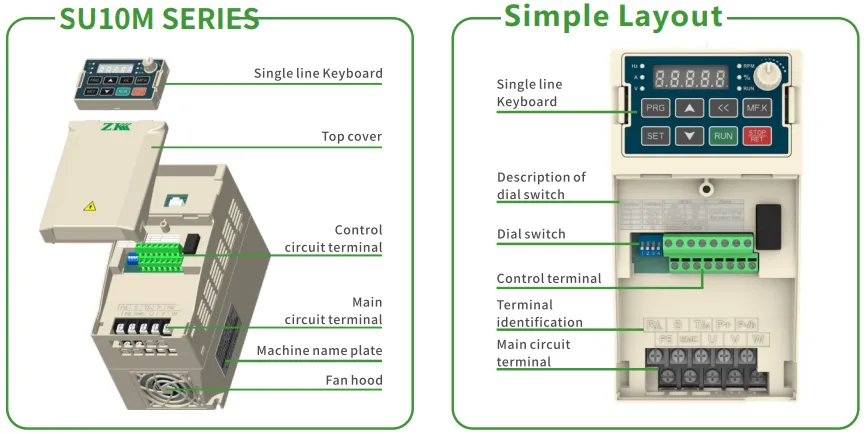

SU10M Series pump inverter Appearance Details

Product Features:

1. Layered structure design. The electrical part is separated from the cooling air duct layer by layer, and each part is independent, which can effectively deal with the dust problem of circuit boards and sensitive devices.

2. Powerful function. Support SRM & PMSM & AM Driving. Strong EMC anti-interference performance.

3. Low frequency stop protection. When the frequency is adjusted, if it is in the low frequency state for a long time and is lower than the set value, the frequency inverter will cut off the output and effectively protect the motor.

4. Hige-efficient MPPT. The software can quickly detect changes in bus voltage and then ensure the maximum output power of Solar panels when sunlight and temperature change.

5. Compatible with dual-mode AC and DC power input at same time. When the photovoltaic panel energy is insufficient, it will automatically cut into the AC power grid. When the photovoltaic panel energy is sufficient, the AC power grid will automatically cut out.

6. One key to clean the pump. When the pump impeller is blocked due to sediment, the inverter has built-in water pump cleaning function,
which can clean foreign matter and impurities in the water pump with one button.

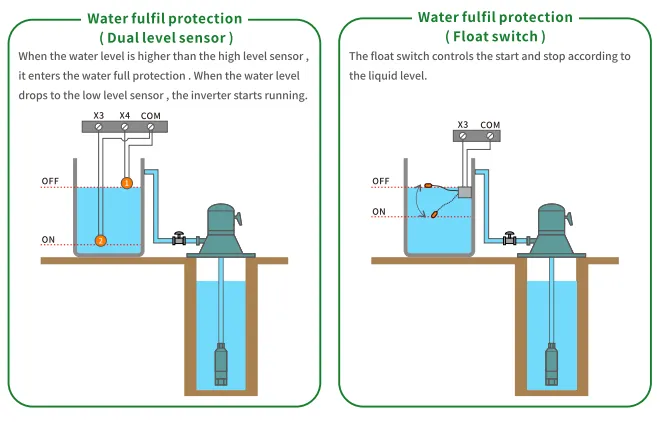

7. Full water protection. Inverter judges according to the input liquid level sensor signal and effectively controls the liquid level to
prevent water overflow.

8. Smart IOT control. Support remote control and monitoring by mobile APP or PC web. The customer can adjust parameters and monitor the pump operation state
conveniently.

Layered Structure Design

Full Water Protection

Smart Internet of Things

SU10M-2T Series Model List:

Models	Rate current(A)	Output voltage(3PH VAC)	Applicable for pumps(KW)	Recommend Voc voltage (VDC)
Mini type D2: 150V DC to 450V DC or 220V±15% AC 50/60Hz Input, 3 Phase 0-220V AC output
SU10M-D2-R75G-B	4A	0-220V	0.75kw	360V to 430V
SU10M-D2-1R5G-B	7A	0-220V	1.5kw	360V to 430V
SU10M-D2-2R2G-B	10A	0-220V	2.2kw	360V to 430V
SU10M-D2-004G-B	16A	0-220V	4.0kw	360V to 430V

Item		Specification
Power input	Voltage, frequency	D1: 90VDC-400VDC or 110V±15% AC, 50/60HZ; D2: 150VDC-450VDC or 220V±15%AC, 50/60HZ; D3: 250VDC-780VDC or 380V±15%AC, 50/60Hz; T3: 350VDC-780VDC or 380V±15%AC, 50/60HZ;
	Allowable fluctuations	Voltage Unbalance Rate:<3%; Frequency:±5%; Aberration Rate: Asiec61800-2
	Power factor	≥0.94(with DC reactor)
	Efficiency	≥96%
Output	Output voltage	Output underrated condition: 3 phase, 0~input voltage, inaccuracy<5%
	Output frequency	G type:0~600Hz
	Output frequency	Max frequency±0.5%
	Overload capacity	G type: 150% rated current/1 min, 180% rated current/10s, 200% rated current/0.5s
Main control perfor mance	Motor control mode	MPPT, V/F without PG, VC without PG, VC with PG
	Speed control range	Vector control without PG, rated load 1:100; Vector control with PG, rated load 1:1000;
	Steady speed accuracy	VC without PG: ≤2% rated synchronized speed; VC with PG: ≤0.05% rated synchronized speed
	Starting torque	VC without PG: when 0.5Hz, 150% rated torque; VC with PG: when 0Hz, 200% rated torque
	Torque response	VC without PG:≤20ms;VC with PG:≤10ms
	Frequency accuracy	Digit setting: max frequency x ±0.01%; Analog setting: max frequency x ±0.2%
	Frequency resolution	Digital setting: 0.01Hz; Analog setting: maximum frequency x 0.05%
Product basic functions	Torque boost capacity	Auto torque upgrade 0.0%~ 100.0%; Manual torque upgrade 0.0%~30.0%
	V/F curve	4 modes: one linearity torque characteristic curve, one self-setting V/F curvemode, one drop torque characteristic curve(1.1- 2.0 powers), and square V/F curve mode.
	Acceleration/ Deceleration curve	2 modes: linear Acceleration/Deceleration and s curve Acceleration/Deceleration. 4 sets ofACC/DEC, time unit 0.01s selectable, longest time: 650.00s.
	Rated output voltage	Rely on power supply voltage compensate function, while motor rated voltage is 100%, set it at the range of 50-100% (output can not over input voltage).
	Voltage auto-adjustment	While power supply voltage fluctuates, it can auto-keep constant output voltage
	Auto energy-saving running	While under V/F control mode, according to load situation, auto-optimize output voltage to save energy.
	Standard functions	PID control, seedtrack, power off restar, jump frequency, upper/lower frequency limit control, program operation, multi-speed, RS485, analog output, frequency impulse output.
	Frequency setting channels	Keyboard digital setting, keyboard potentiometer, Analog voltage/current teminal AI1, AI2, Communication given and multi-channel terminal selection, Main and axiliary channel combination, expansion card, supporting different modes switch.
	Feedback input channel	Voltage/Current Terminal Al1, Voltage/Current Terminal Al2, Communication given, pulse input X5.
	Running command channel	Operation panel given, external terminal given, communication given, expansion card given
	Input command signal	Start, stop, FWD/REV, JOG, multi- step speed, reset, ACC/DEC time selection, frequency given channel selection, exterior fault alarm.
Protective function		Over voltage, under-oltage, current limit, over-current, overload, electric thermal relay, overheat, over voltage stall, data protection, rapid speed protection, input/output phase failure protection.
Envir onment	Install place	altitde ≤ 100m above 1000m down the rated amount, each increas of 100m down the rated mountof 1%; no condensation, ice ,rain, snow, hail; solar radiation below 700W/m², air pressure 70-106 kPa.
	Temperature, humidity	-10~ +50°C, derating above 40°C, maximum temperature 60°C (no-load operation) 5% to 95% RH (non-condensing)
	Vibration	When 9~200Hz, 5.9m/s2(0.6g)
	Storage temperature	-30~+60°C
	Protection grade	IP20
	Cooling method	Forced air cooling
